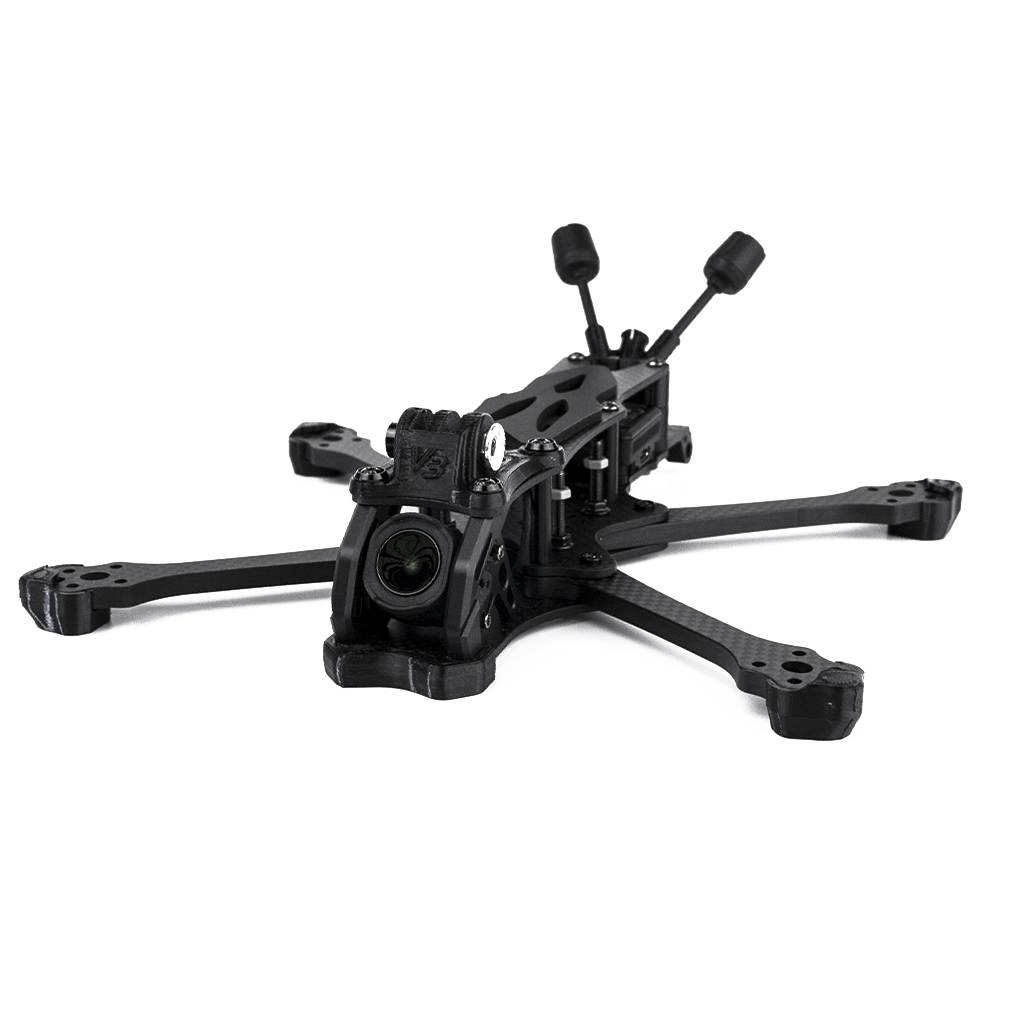

BCrow Swift V3 LX is a hi-end frame for building a freestyle drone. The Wide-X configuration is ideal for fast and precise acrobatic flying. The frame excels in high durability while maintaining a reasonable weight of 136 grams. It supports both analog and digital video systems, including DJI O4 Pro.
For maximum strength, the arms are milled from 5.5mm Toray T700 carbon. The front camera mount is made of durable 7075 aluminum alloy, with the camera secured via soft softmounts that dampen vibrations. The frame accommodates stacks with mounting hole spacing of 30.5×30.5 mm and 20×20 mm. There is space in the rear for a video transmitter with mounting hole spacing of 20×20 mm or 25.5×25.5 mm. The frame also includes an aluminum heatsink that ensures efficient heat dissipation from the video transmitter.
The DJI O4 unit is not included with the frame.
Key Features
- Diagonal motor distance: 230mm
- Arms: 5.5mm Toray T700
- Camera mount: Aluminum 7075
- Heatsink: Aluminum 6061
- Mounting holes for stack: 20x20/30.5x30.5mm M3
- Mounting holes for VTX: 20x20mm M2
- Mounting holes for motors: 16mm M3
- Max. propeller size: 5.1"
- Camera size: 19/20mm
- Height for stack: 23mm
- Weight: 136g
Package Includes
- 1x Frame
