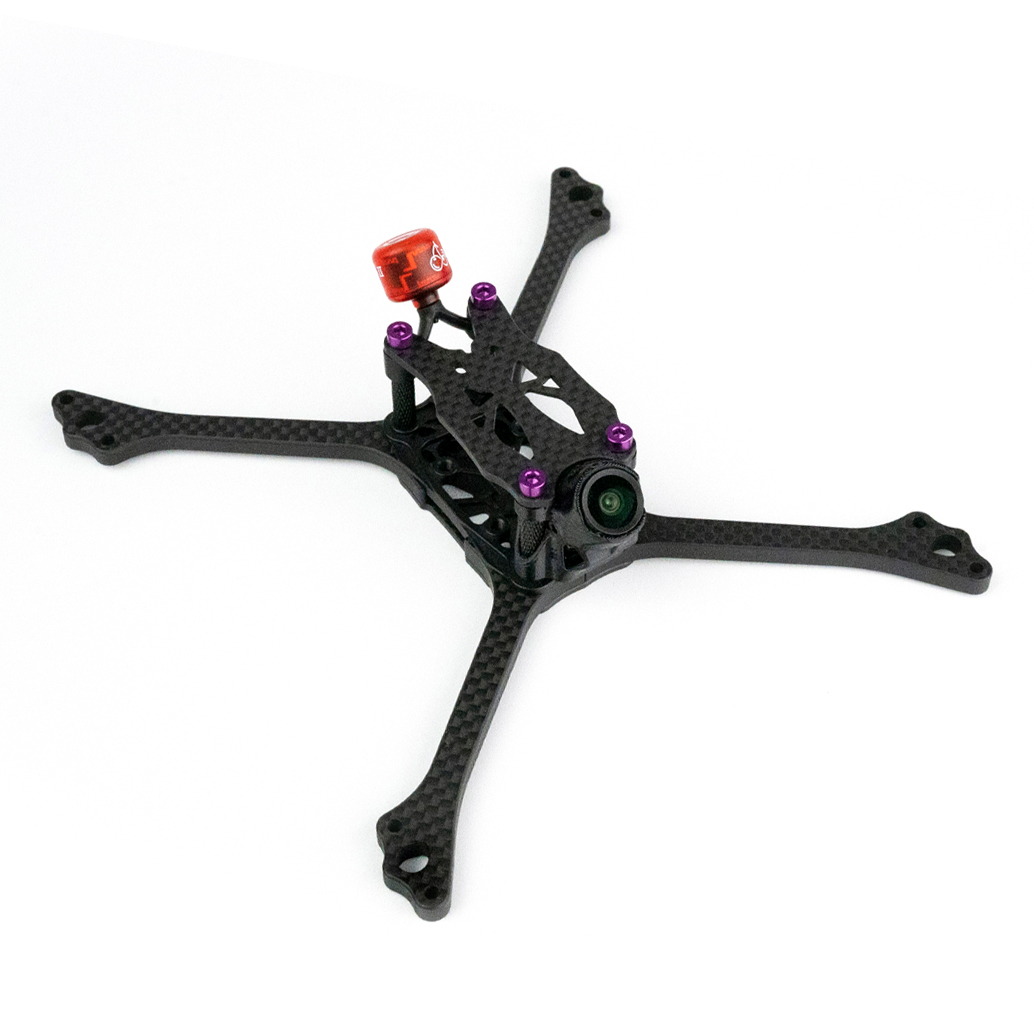

Bcrow Pro V6 is a high-end 5" FPV drone frame. The UL (Ultra Light) version has a motor-to-motor diagonal distance of 188 mm and weighs approximately 47 g. The frame is designed for propellers up to 5.1" and stacks with 20×20 mm M3 mounting holes.
The frame offers an excellent combination of strength, low weight, and precision manufacturing. The 5mm arms are made from T800 carbon fiber, while the center plate is made from T700 carbon fiber and reinforced with a CNC-machined brace made of 7075 aluminum alloy. This combination ensures high rigidity, precision, and structural stability even under extreme stress.
The frame is designed for Nano-size cameras (14 mm). The variants differ according to the 3D-printed camera mount – PN for Foxeer Predator Nano (48–51°), RN for Runcam Racer Nano 4 (48–51°), and NR for HDZero Nano90 V2 (50–53°).
The package does not include a camera or antenna.
Key Features
- Diagonal motor distance: 188mm
- Arms: 5mm - Carbon T800
- Top and bottom plate: Carbon T700
- Middle plate: Aluminum 7075
- Motor mounting holes: 16mm M3
- Stack mounting holes: 20x20mm M3
- Camera size: Nano (14mm)
- Max. propeller size: 5.1"
- Weight: 47g
Package Includes
- 1x Frame
