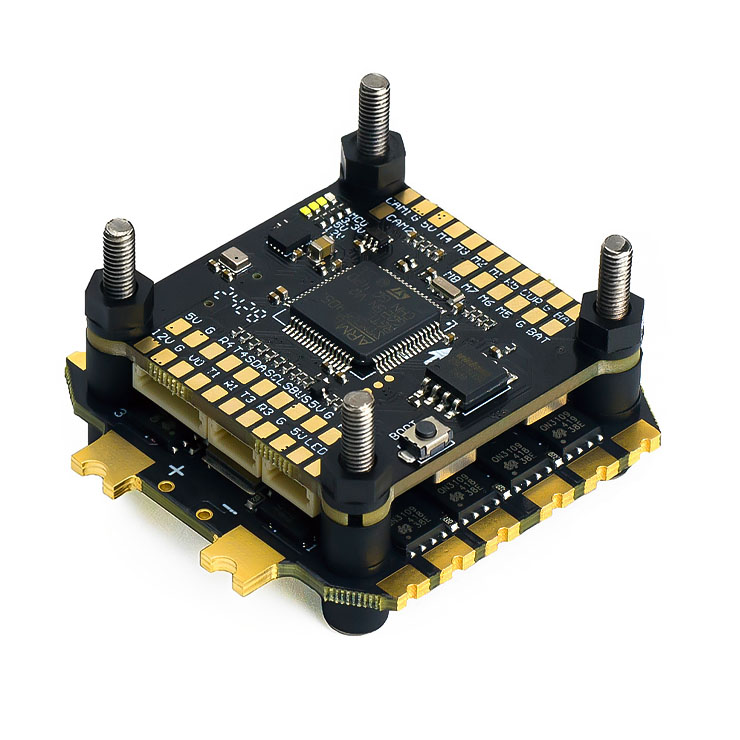

Axisflying Argus Eco F405 + 60A BLS is a combination of a flight controller with F4 processor and a powerful 60A ESCs. The stack is especially suitable for freestyle 5-6" drones or long-range 7" drones powered by 4-6S Lipo batteries. The flight controller uses an STM32F405 processor combined with an ICM42688P gyro. It also has 16MB memory for Blackbox and a barometer for altitude measurement. There are 5 UARTs and I2C pads for connecting other components. The 60A ESCs use Bluejay firmware that supports bidirectional dshot and feature a current sensor (scale 200).
Key Features
- Power supply: 4-6S
- MCU: STM32F405RGT6
- Gyro: ICM42688P
- BEC: 5V/3A, 12V/2A
- Number of UARTs: 5
- Blackbox memory: 16MB
- Barometer: Yes
- Firmware ESC: BlHeli_S
- Maximum current: 80A
- Mounting holes: 30.5x30.5mm M3
- FC size: 36x36x6mm
- FC weight: 7g
- ESC size: 57x56x6mm
- ESC weight: 28g
Package Includes
- 1x FC
- 1x ESC
- 1x Cable Set
- 1x 1000uF 35V capacitor
- 1x Softmount Set
- 1x Screw Set
- 1x XT60 connector with cable
