Axisflying Smurfs Mini VTX 25-100mW

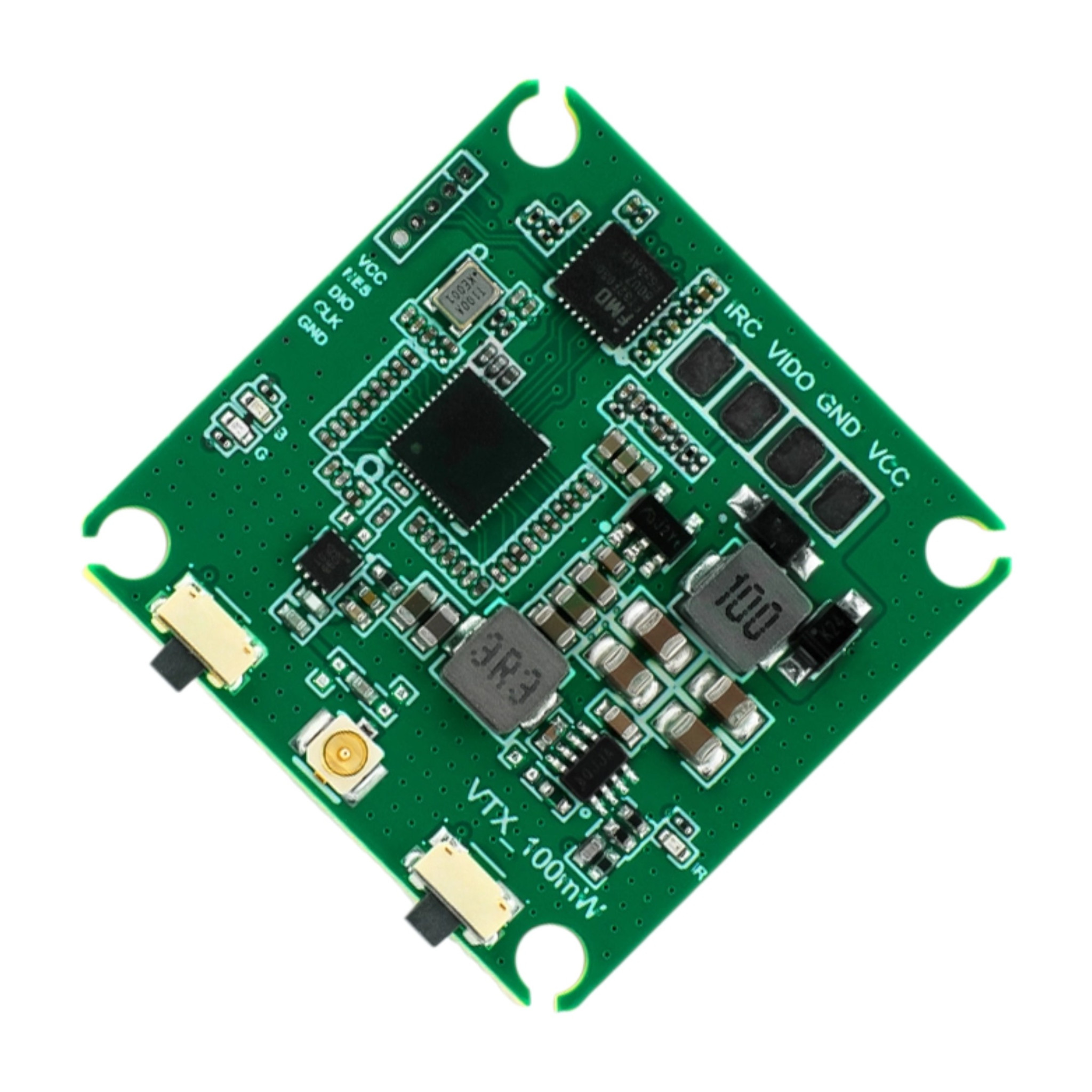

Axisflying Smurfs Mini is a miniature analog video transmitter. Thanks to the mounting holes with a spacing of 25.5 × 25.5 mm, a weight of only 3.1 grams, and a very low profile, it is suitable for small toothpicks and drones with an AIO board.

The video transmitter offers switchable output power of 25/50/100 mW, which covers typical FPV flying. The antenna connects via a u.FL connector, and the video transmitter can be powered in the range of 5-25 V. Axisflying Smurfs Mini can be controlled with buttons or more conveniently via the flight controller using the IRC Tramp protocol. The overall dimensions of the video transmitter are 30 x 30 mm. The video transmitter has no connector, and only solder pads are available for connection.
