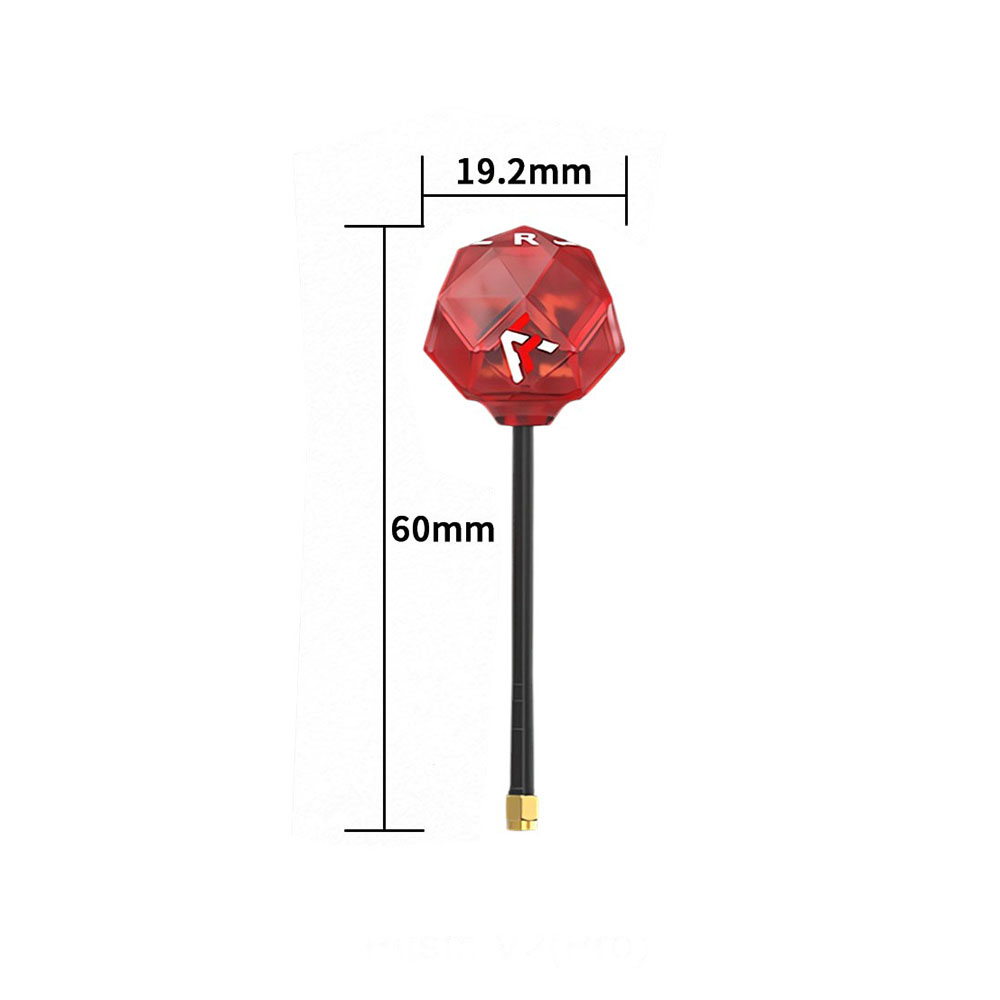

Axisflying Prism V2 is an antenna for video transmission in 5.8GHz band. The antenna is available in several variants. Antennas with a length of 60mm and 100mm are primarily suitable for freestyle drones. The size of the antenna housing is 19.2mm and gain is 4dBi.
The 150mm antenna uses a larger radiator. The antenna housing size is 32mm and the gain of the antenna is 5dBi. This antenna is primarily suitable for long-range drones.
RHCP polarization is particularly suitable for analog video transmission. The LHCP variant is used in digital video transmission for Walksnail Avatar and DJI O4.
Antenna is delivered in black color.
Key Features
- Connector: SMA
- Frequency range: 5.6-6GHz
- Gain: 4dBi (Pro), 5dBi (Max)
- Polarization: RHCP/LHCP (depending on variant)
- Length: 60/100/150mm (depending on variant)
- Weight: 8g (60mm), 10g (100mm), 18g (150mm)
Package Includes
- 1x Antenna
