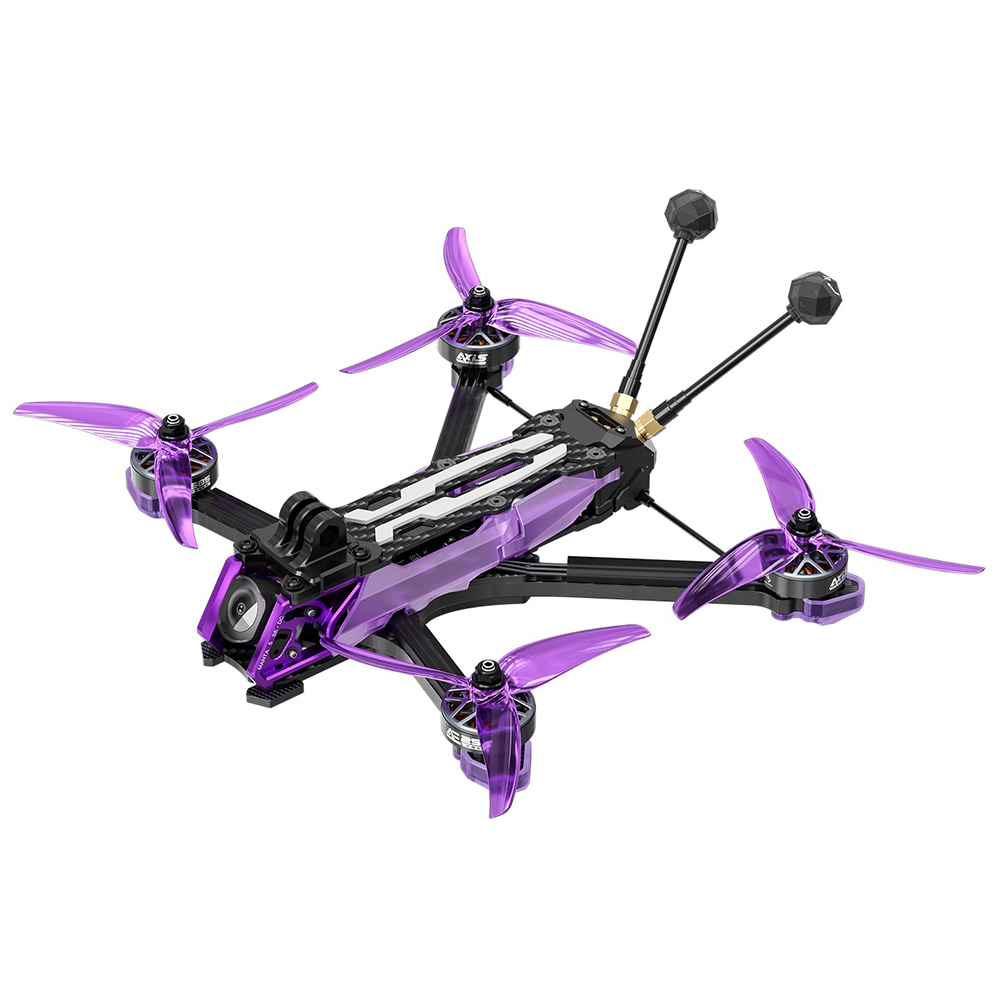

Axisflying Manta5 SE V2 DC O4 Pro - 6S ELRS with GPS

Axisflying Manta5 SE V2 is a 5" freestyle drone with a great price/performance ratio and top-tier DJI O4 Pro video transmission. The drone is in a Deadcat configuration, with the front arms moved further back so the propeller edges are not visible in the FPV image. The drone includes a 3D-printed mount for securing a GoPro camera and a GPS module hidden under the mount. GPS enables automatic return to launch point and displays speed, distance, and direction to the launch point in the FPV image. The second version of the drone is equipped with plastic side panels that protect the electronics from dirt. The arms are milled from 6mm thick carbon for greater durability. The FPV camera is mounted in aluminum side panels using rubber inserts that minimize vibration transfer.

Power is provided by AE2505 V2 1750Kv motors and 60A ESCs with 32-bit firmware. The flight controller uses a powerful H743 processor and two ICM42688P gyros. It also features 16MB of blackbox memory and an integrated barometer for altitude measurement. The drone is equipped with an ELRS receiver on 2.4GHz.

Recommended batteries are 6S with a capacity of 1300–1800mAh.

Important notice: The DJI O4 camera uses a new generation of gyroscopes that are more sensitive to vibrations. This may affect the proper functioning of RockSteady and Gyroflow stabilization.
