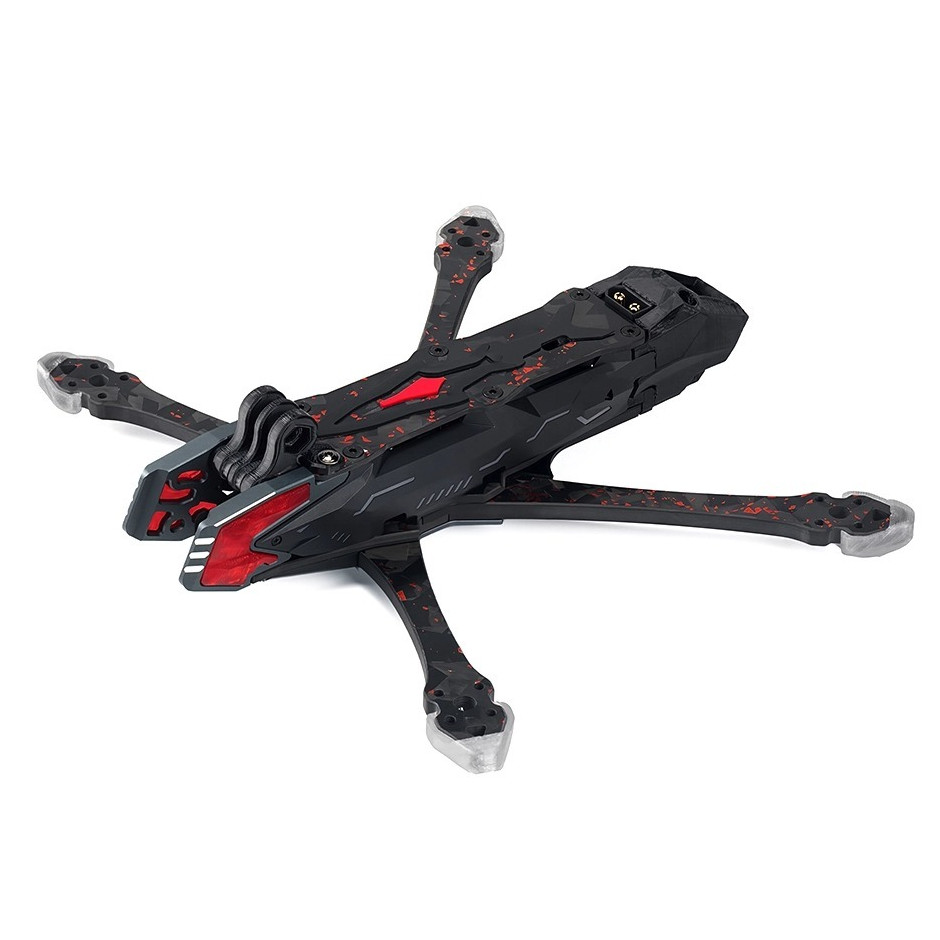

Axisflying Manta5 Pro

Axisflying Manta 5 Pro is a frame designed for building a 5" freestyle drone with DJI O4 Pro video transmission. At the front, there's a mount for attaching an action camera such as a GoPro or DJI Action. Thanks to its deadcat geometry, where the FPV camera is placed in front of the arms, the DJI O4 camera's view is free from propeller edges. The frame immediately stands out thanks to its unique design, using "Forged grain" carbon with an eye-catching texture. The sides are protected by side panels that shield sensitive electronics from dirt. RGB LED strips are integrated into the panels, as well as on the underside, illuminating the 6 mm thick arms and the bottom plate. The rear part, made of 3D print, is designed for mounting video transmission antennas, a GPS module, and the XT60 connector. The center section offers space for mounting stacks with 20×20 mm M3 hole spacing. The rear section is dedicated to the DJI O4 Pro video transmitter, with 23 mm of vertical clearance.

This frame is only compatible with DJI O4 Pro transmission.
