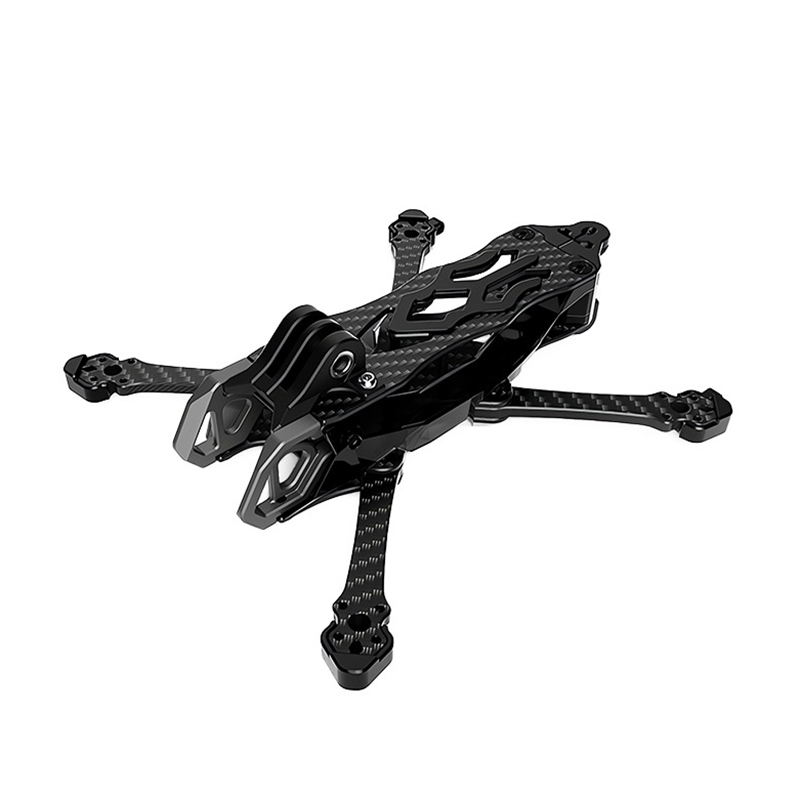

Axisflying Manta 30

Axisflying Manta 30 is a carbon frame designed for building a 3" freestyle drone. The frame is suitable for use with both analog and digital video transmission including DJI O4 (Lite). It features plastic side panels that protect the electronics from dirt.

For good durability, the arms are cut from 4mm thick T700 carbon. The height of the electronic compartment is 16mm, providing ample space for a standard stack. In the center of the frame, there are mounting holes for the stack with a pitch of 20×20 mm M3. The rear of the frame has space for video transmitters. Easily attachable holes with a pitch of 25.5×25.5 mm and 30.5×30.5 mm are prepared. An FPV camera with a width of 19–20 mm is mounted in aluminum side panels. Above the camera is a 3D printed mount for action cameras like GoPro. The frame accommodates motors with mounting holes of 12 mm M2. The weight of the frame is approximately 87g.
