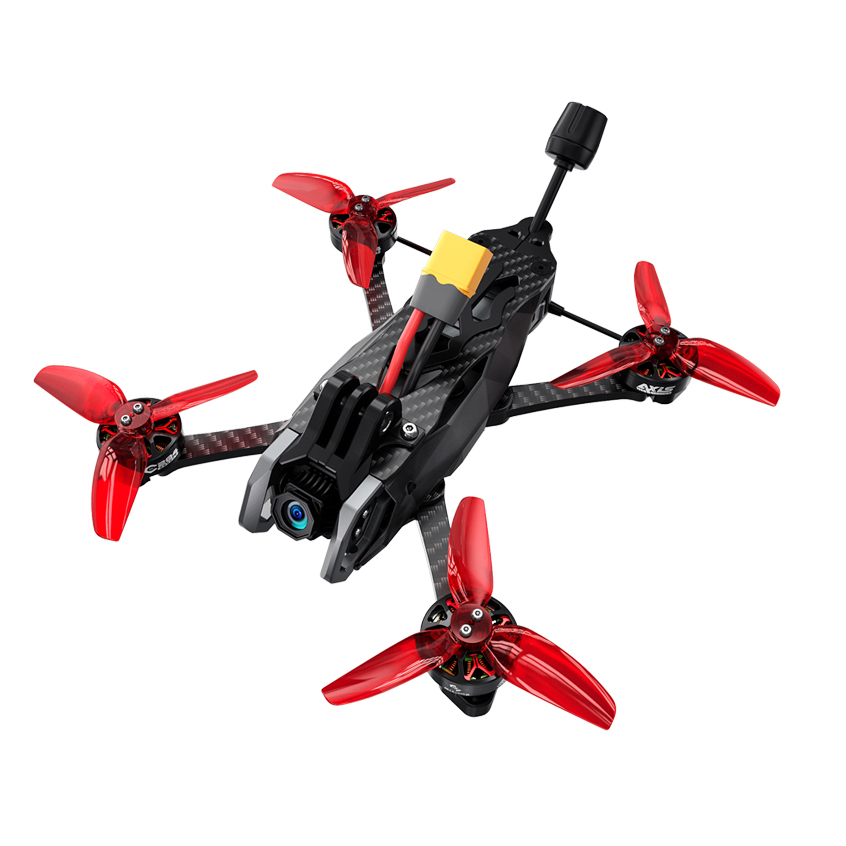

The Axisflying Manta 30 is a compact 3" freestyle drone equipped with a digital DJI O4 video transmission system. It is ideal for outdoor flying in gardens, small fields, or larger parks. The drone includes a 3D-printed GoPro mount and a GPS module that enables an automatic return-to-home function. The plastic side plates protect the electronics from dust and debris, while the 4mm carbon arms ensure excellent durability.
The DJI O4 unit is equipped with an Axisflying aluminum heatsink, which improves cooling efficiency and provides mechanical protection for the video transmitter. For strong propulsion, the drone uses 2004 2650Kv motors. The flight is controlled by the Argus F745 AIO board, featuring a powerful processor, ICM426288 gyro, 32MB blackbox memory, and a barometer for altitude measurement. The integrated 40A ESCs run on AM32 firmware.
Recommended batteries: 6S LiPo with a capacity of 650–850mAh.
Key Features
- Diagonal distance of motors: 160mm
- Video transmission: DJI O4
- Motors: Axisflying C204 2004 2650Kv
- AIO board: Axisflying Argus F745
- Gyro: ICM42688-P
- Integrated barometer
- Frame: Axisflying Manta 30
- Arm thickness: 4mm
- Bottom, middle and top plate thickness: 2mm
- Receiver: ELRS 2.4GHz
- Conector: XT60
- Propellers: 3"
- Weight: approx. 225g
User Guides
Package Includes
- 1x Drone
- 1x Propeller Kit
- 2x Lipo Strap
- 2x Battery Pad
- 1x GoPro Holder
