Axisflying ECO F405 4-8S
In Stock
€ 40,99

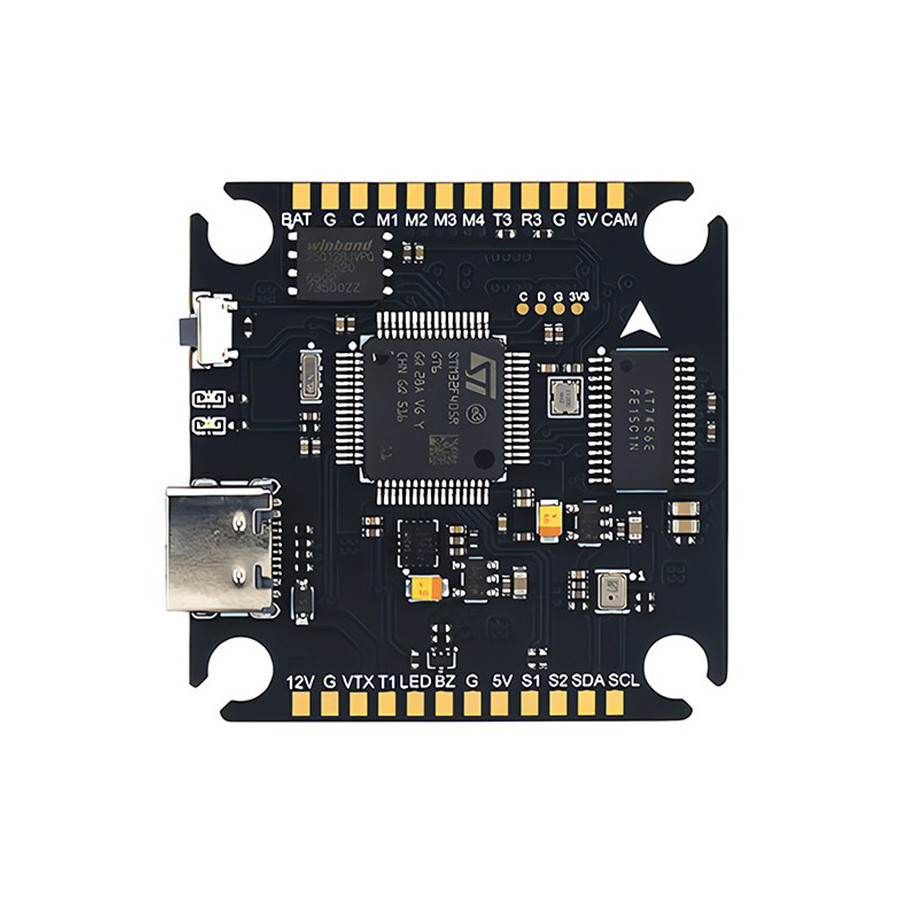

Axisflying ECO F405 is an affordable flight controller suitable for freestyle and long-range drones powered by 4–8S LiPo batteries. The core of the flight controller is the F405 processor combined with the ICM42688P gyro. It is also equipped with a barometer for altitude measurement, 12V and 5V BEC, and 16MB memory for Blackbox. For easy connectivity of peripherals without soldering, there are connectors available. For soldering enthusiasts, solder pads are also available. To connect peripherals, the board has 5 UARTs and an I2C bus.
Key Features
- Input voltage: 4-8S
- Processor: STM32F405RGT6
- Gyro: ICM42688P
- Number of PWM outputs: 4
- BEC: 12V@2A, 5V@2A
- Number of UARTs: 5
- I2C: Yes
- Analog OSD: Yes
- Blackbox memory: 16MB
- Mounting hole spacing: 30.5x30.5mm M3
Package Includes
- 1x Flight Controller
- 1x Cable Set
- 1x Softmount Set
