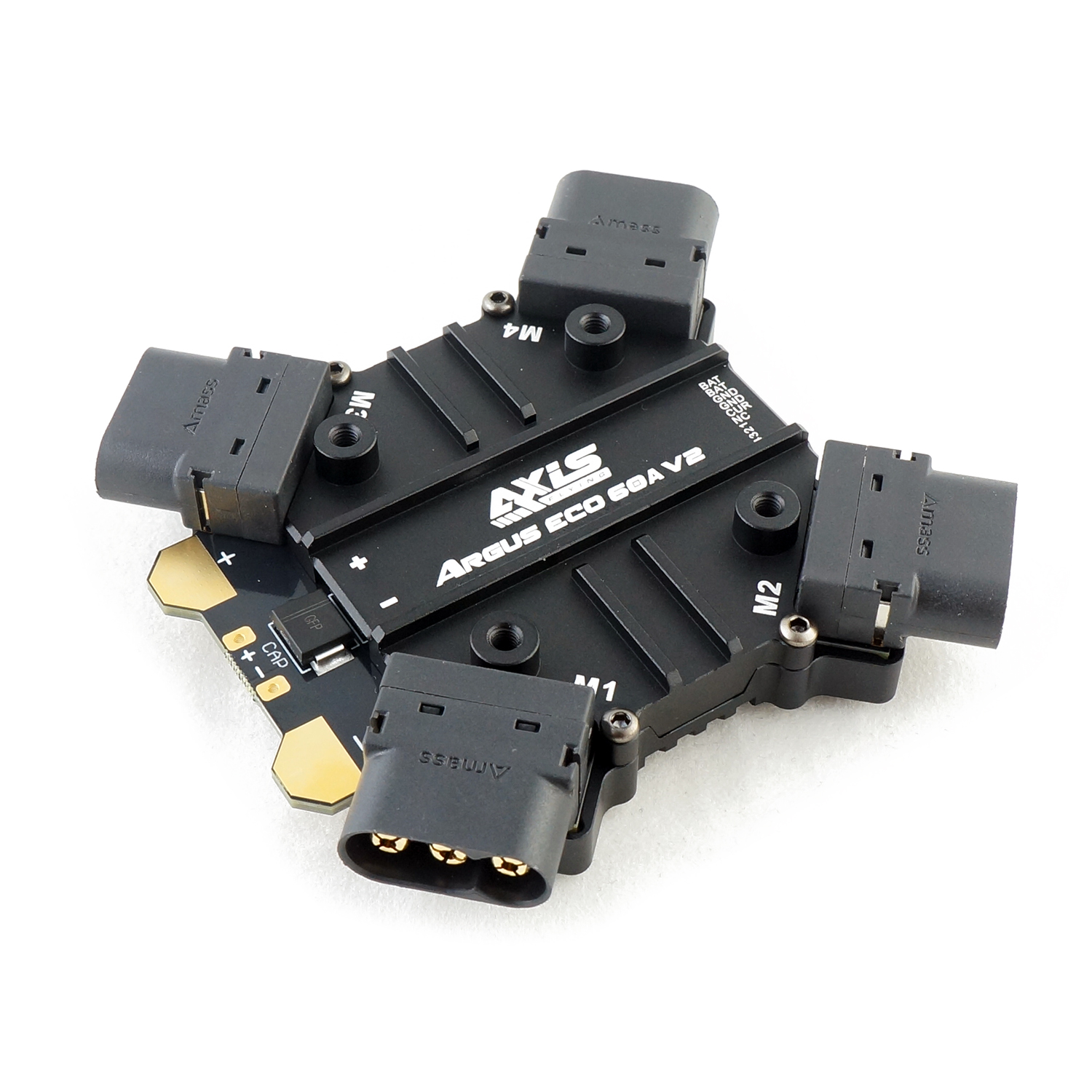

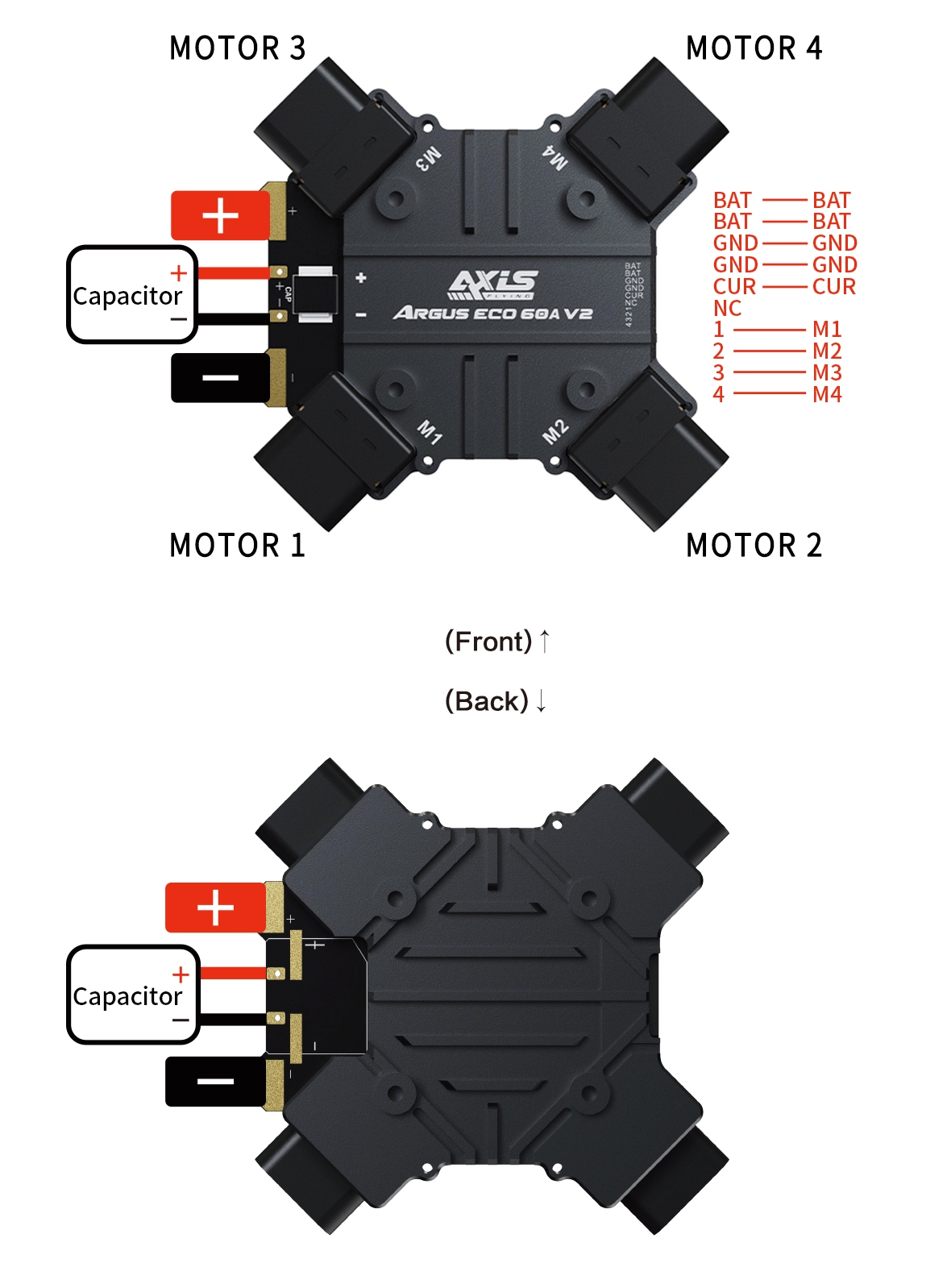

Axisflying ECO 60A V2 is a powerful ESC with Bluejay firmware. The ESC is designed primarily for larger 7-10" long range drones powered by 4-6S Lipo batteries. The entire ESC is encased in an aluminum heatsink for excellent heat dissipation and high mechanical durability. The aluminum heatsink features mounting holes with 30.5x30.5mm M3 spacing for easy installation into the frame. The ESC is also equipped with MR60 connectors for easy motor connection without soldering. Only the main battery power lead and an external capacitor need to be connected. The ESC measures 78x78mm. Make sure there is enough space in the frame.
The ESC is equipped with a current sensor and a protective TVS diode.
Key Features
- Power supply: 4-6S
- ESC firmware: Bluejay
- Maximum continuous current: 60A
- Current sensor: Yes (scale 200)
- Mounting holes: 30.5x30.5mm M3
- ESC size: 78x78x18mm
Package Includes
- 1x ESC
- 1x XT60 with cable
- 1x Interconnect cable
- 1x 1000uF 35V capacitor
- 1x Set of soft mounts
