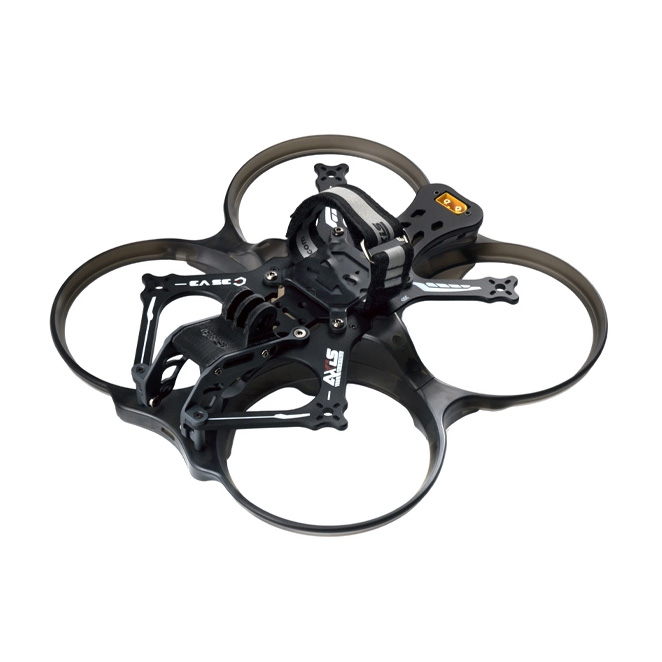

Axisflying C35 V3 is a Cinewhoop frame for 3.5" propellers with a diagonal motor spacing of 160 mm. The frame is designed for use with the digital video transmission DJI O4 Pro. The base of the frame is a 3.5 mm thick carbon plate complemented by plastic propeller guards. The guards also protect the drone's electronics from dirt. The cover includes openings for SMA connectors for convenient placement of video transmitter antennas. In the front, there is space for a USB-C connector, which is easily accessible for convenient configuration of the flight controller.
The frame is compatible with stacks and AIO boards with a mounting spacing of 20×20 mm and 25.5×25.5 mm (M2). There is 36 mm of vertical space for electronics in the frame. The motor mounting holes are spaced at 9 mm or 12 mm (M2). The front mount for the DJI O4 Pro camera is machined from aluminum. Above the camera mount, there is a 3D printed holder for a GoPro camera. The frame weighs approximately 206 grams.
The frame is available in black.
Key Features
- Diagonal motor distance: 160mm
- Carbon plate thickness: 3.5mm
- Mounting holes for FC: 20×20mm / 25.5×25.5mm
- Mounting holes for VTX: 20×20mm / 25.5×25.5mm
- Mounting holes for motors: 9/12mm M2
- Camera spacing: 20mm
- Propeller size: 3.5"
- Weight: approx. 206g
Package Includes
- 1x Frame
- 1x Set of plastic parts
- 2x Lipo strap
- 2x SMA pigtail
- 1x USB-C connector
