Axisflying Bando5 SE O4 - 6S ELRS with GPS

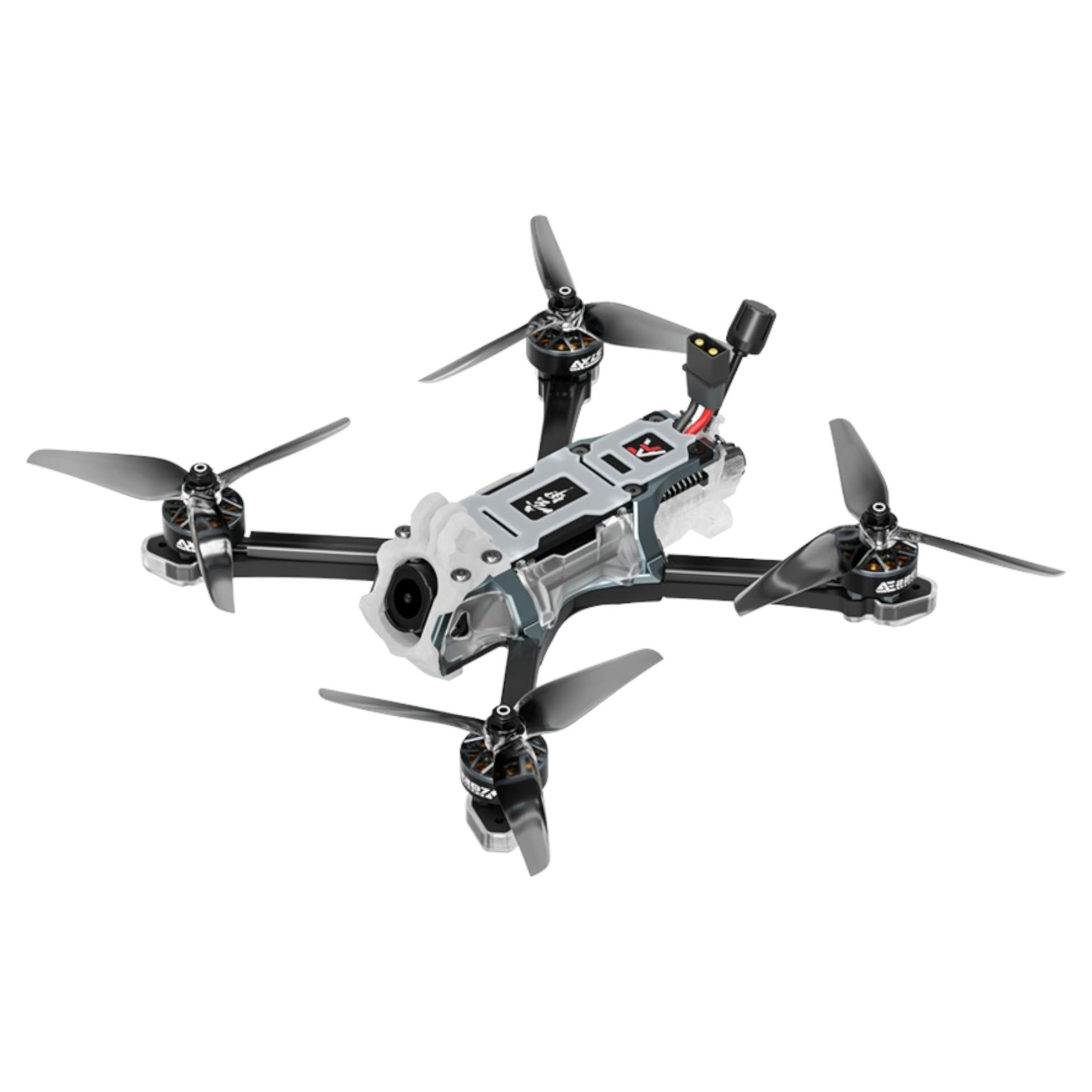

Axisflying Bando 5 SE is a durable 5" freestyle drone with digital HD transmission DJI O4 Lite, suitable for freestyle, bando and proximity flying. The SE is a more affordable version of the Bando series that lowers the entry barrier while maintaining a robust design for flying in demanding environments. The frame uses a True X geometry with a 230 mm motor diagonal and is built from T700 carbon, 7075 aluminum parts and printed TPU parts. The arms are 7 mm thick, giving the drone high resistance when hitting hard obstacles. The electronics stack is covered by plastic side panels. The side panels can be opened at a 60° angle, allowing convenient access to the components during servicing.

Control is handled by the Argus ECO F405 stack. The flight controller features an F405 processor, ICM-42688P gyro, 16 MB blackbox memory and a barometer for altitude measurement. The stack is complemented by 60 A ESCs with BLHeli_32 firmware. Propulsion is provided by AE2207 V2 1960 KV motors combined with 5,1" HQ R37 propellers. The drone is powered by a 6S battery.

Digital HD transmission DJI O4 Lite supplemented with a Black Bear long-range antenna. RC signal reception is handled by an ELRS receiver on 2,4 GHz. It also includes a Beizheng121 GPS module for functions such as return to home.

The drone weight without battery is 461 g. Recommended are 6S LiPo or LiHV batteries with a capacity of around 1300–1800 mAh and an XT60 connector.

Important notice: The DJI O4 camera uses a new generation of gyroscopes that are more sensitive to vibrations. This may affect the proper functioning of RockSteady and Gyroflow stabilization.
