Axisflying Bando 5

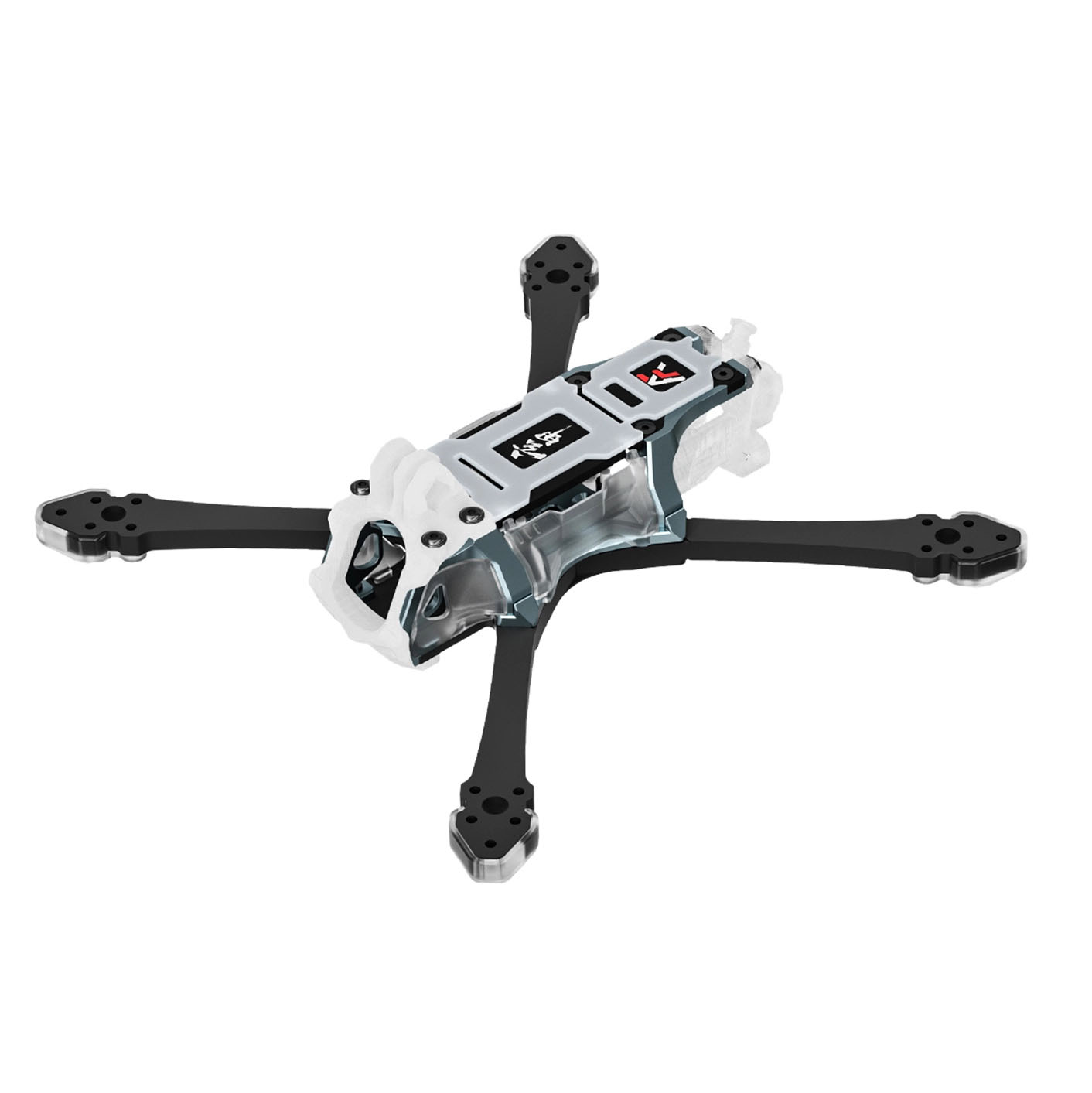

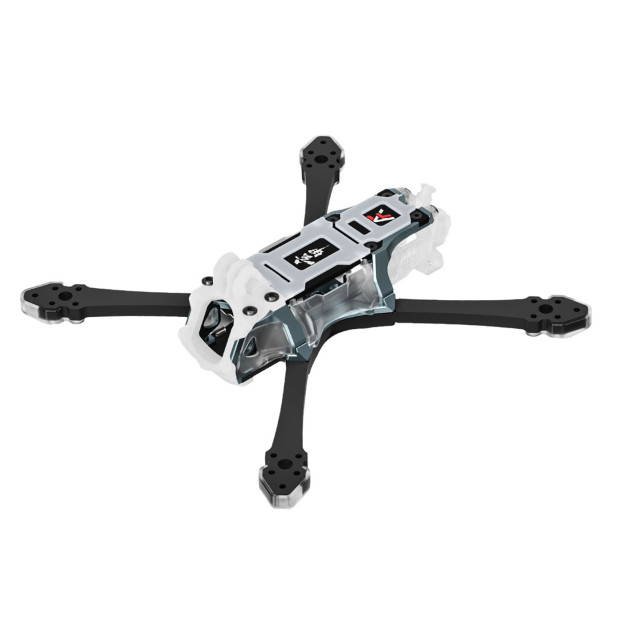

Axisflying Bando 5 is a freestyle frame in the shape of True X for 5.1" propellers, particularly suitable for aggressive bando flying in tight spaces and abandoned buildings. The arms are cut from T700 carbon with a thickness of 7 mm for high durability. The diagonal motor distance is 230 mm, and the weight including 3D print is approximately 205 g.

The frame has an aluminum 7075 alloy structure, which serves as both a FPV camera mount and a middle and rear plate. The frame is equipped with plastic sides that protect the stack from side impacts and dirt. The sides can be opened at a 60° angle, allowing convenient access to components during assembly and servicing. The frame also includes plastic arm covers, a camera cover with a GoPro mount, and an antenna holder.

The frame supports stacks with mounting distances of 30.5 × 30.5 mm and 20 × 20 mm. The space for the vertical stack is 19 mm. At the back of the frame, there is space for a video transmitter with mounting holes spaced 25.5 × 25.5 mm. The frame supports motors with mounting holes 16 mm M3.
