Axisflying Argus Pro Eco F405 + 80A BL32
In Stock
€ 143,39

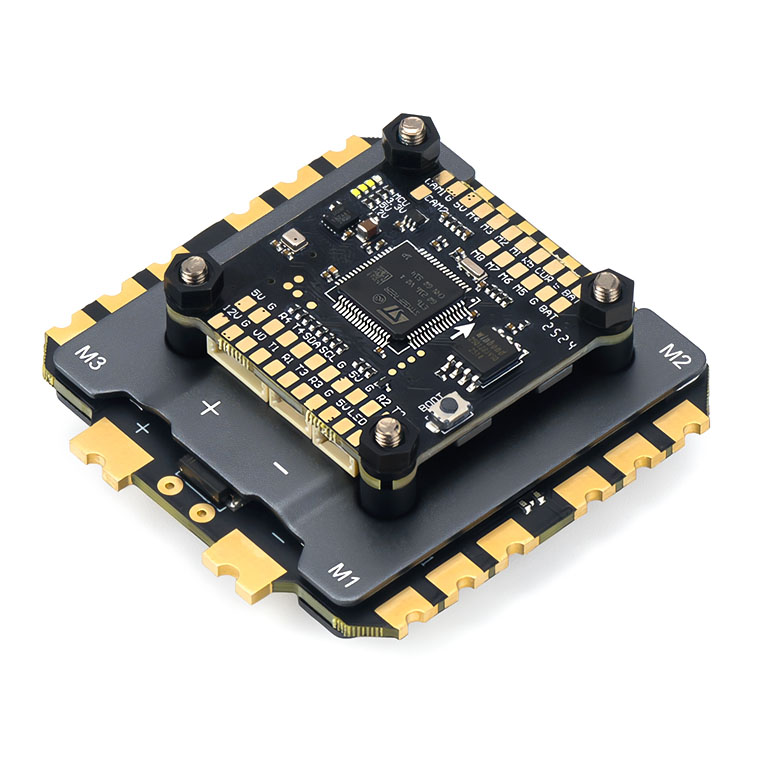

Axisflying F405 + 80A Pro is a combination of flight controller and a high-performance ESC suitable for 10-13" drones. The stack supports power for 4-8S batteries. The flight controller uses the STM32F405 microprocessor and the ICM42688P gyro. It features 16MB of blackbox memory, a barometer for altitude measurement, outputs for 8 motors, and 5V and 12V BECs. The ESC can handle high current up to 80A and uses 32-bit firmware. The aluminum heatsink helps dissipate heat and protect sensitive components.
The ESCs have larger dimensions 57x56x7mm, so make sure there is enough space in the frame.
Key Features
- Input Voltage: 4-8S
- MCU: STM32F405RGT6
- Gyro: ICM42688P
- BEC: 5V/3A, 12V/2A
- Number of UARTs: 5
- Blackbox Memory: 16MB
- Barometer: Yes
- ESC Firmware: 32-bit
- Max Current: 80A
- Current Sensor: Yes (scale 200)
- Mounting Holes: 30.5x30.5mm M3
- FC Size: 36x36x6mm
- FC Weight: 7g
- ESC Size: 57x56x7mm
- ESC Weight: 42g
Package Includes
- 1x Flight Controller
- 1x ESC
- 1x Capacitor
- 1x Connector Cables
- 1x Power Cables
- 1x Screw Set
- 1x Soft Mount Set
