Axisflying Argus Pro 6-in-1 100A 8S BLS

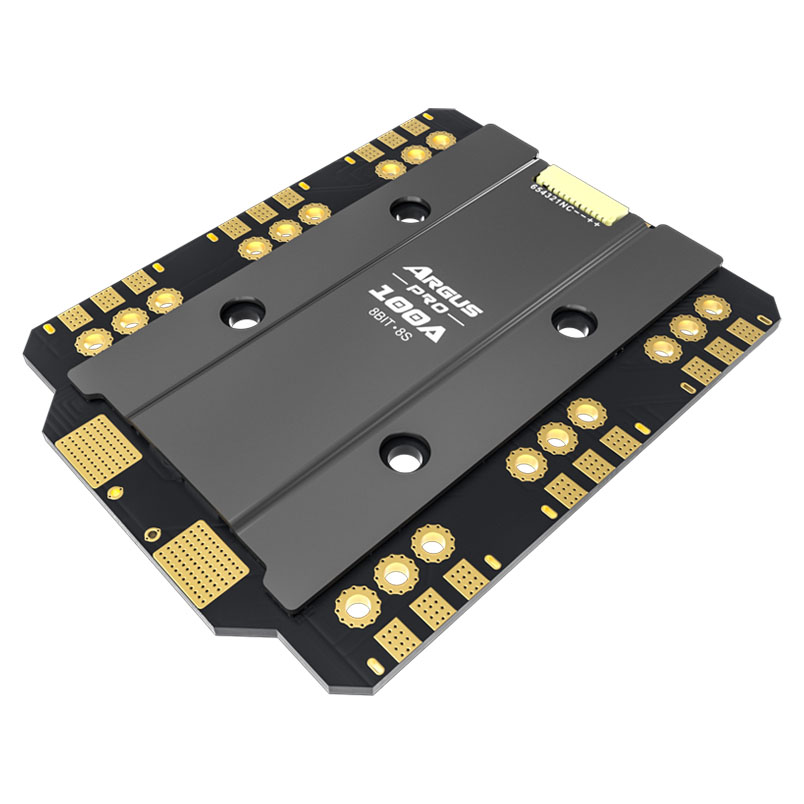

Axisflying Argus Pro 100A is a unique ESC containing 6 regulators on one board. The regulators can handle current up to 100A and power supply in the range of 2-8S Lipo, making them suitable for building larger 10-15" hexacopters.

The regulator has larger dimensions 84x65.5 mm – ensure that there is enough space in the frame. The mounting holes have a standard spacing of 30.5 × 30.5 mm. The regulator allows soldering of MR60PW connectors for easy motor connection. The regulator connects to the flight controller with a non-standard 12-pin cable. There are also solder pads on the bottom side of the regulator.

The regulator has overheat protection. The board has an integrated current sensor. The ESC uses firmware BlHeli_S/BlueJay. For good heat dissipation, the regulator is equipped with a aluminum heatsink, which also protects sensitive components from dirt.
