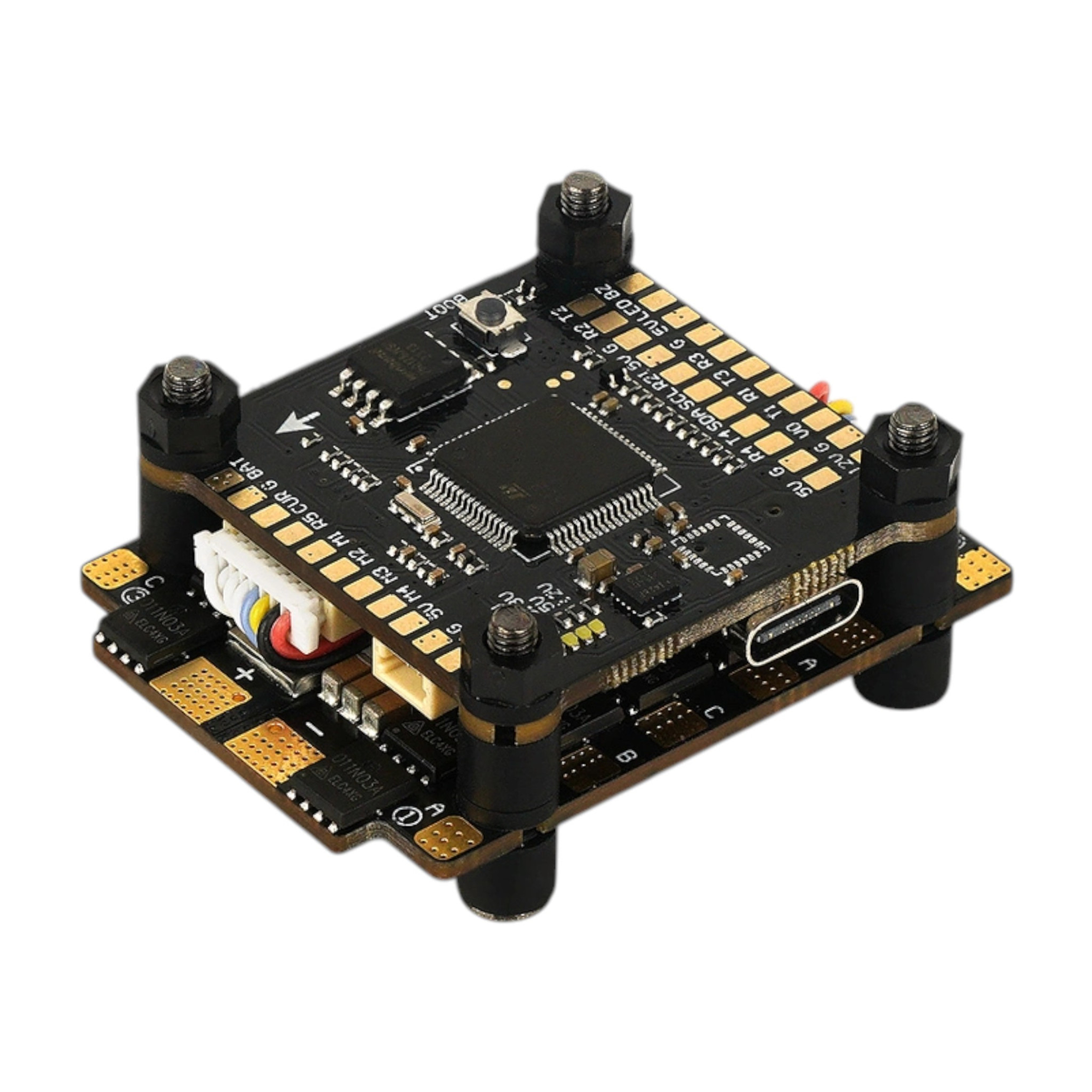

Axisflying Argus ECO F405 + 60A Bluejay
Argus ECO F405 + 60A is an affordable stack that combines a flight controller and a powerful ESC. It is suitable for high-performance 5" freestyle drones, racing drones, or 7-9" long-range drones. The stack supports 4-6S LiPo battery power.
The flight controller uses an F405 processor paired with a ICM42688-P gyro. There is also 16MB of memory for a blackbox, an integrated barometer, and 5V/3A and 12V/2A BEC. The flight controller has various connectors for easy plug-and-play without soldering, although solder pads are also available. The board can be used with both analog and digital video transmission. Additionally, there are I2C pads for connecting a GPS module with a compass.
The ESCs use Bluejay firmware, which supports bidirectional Dshot. They feature a current sensor and can handle up to 60A.
Key Features
- Input voltage: 4-6S LiPo
- Mounting holes: 30.5x30.5 mm
- Processor: STM32F405RGT6
- Gyro: ICM42688P
- Blackbox memory: 16MB
- Number of UART: 5
- Analog OSD: Yes
- Barometer: Yes
- BEC: 5V/3A + 12V/2A
- ESC current: 60A
- Betaflight target: SPDX-SPEDIX F405
- ESC firmware: Bluejay_QH30
- Current sensor: Yes
- Power connector: XT60
- FC size: 36x36 mm M3
- ESC size: 44.8×43×6 mm M3
- FC weight: 7 g
- ESC weight: 13.5 g

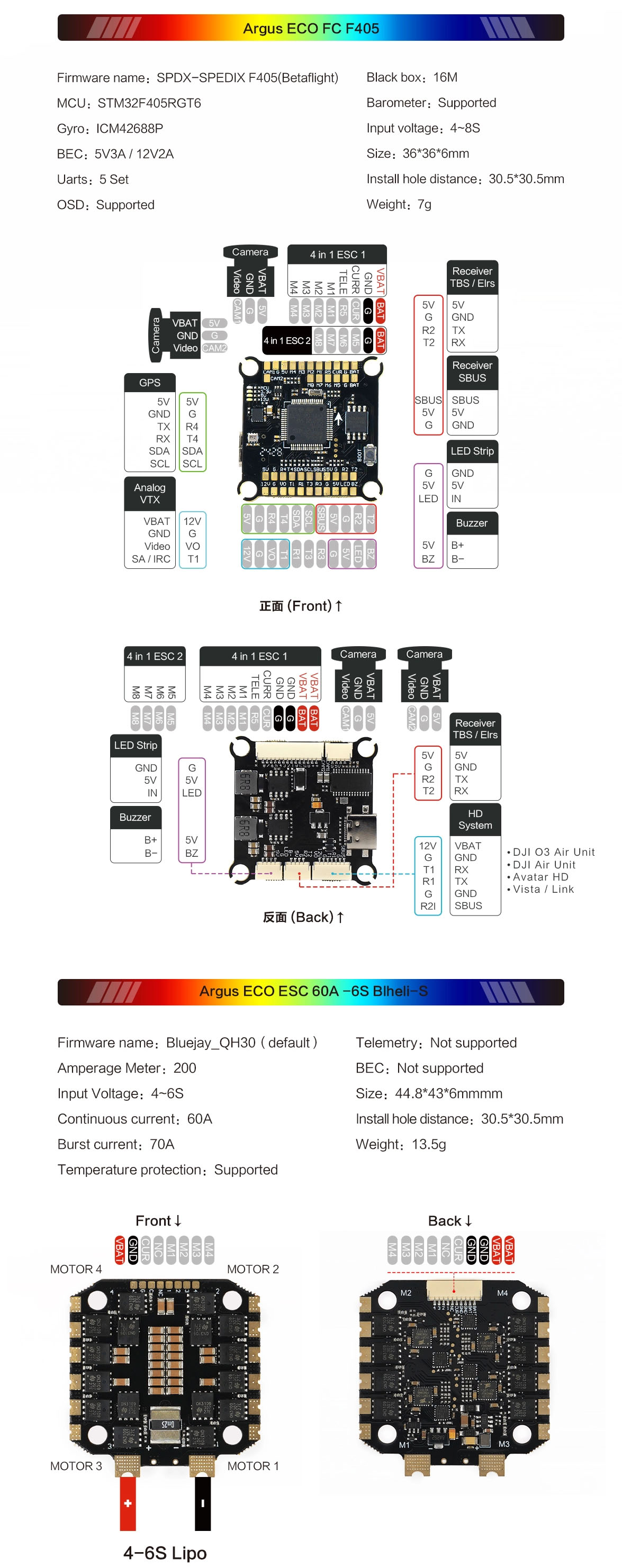

User Guides
Package Includes
- 1× Connecting cable
- 4× Screw M3×30
- 4× Locknut M3
- 1× Capacitor 35V 1000uF
- 8× Rubber anti-vibration ring
- 1× Power cable (XT60)
- 1× Receiver cable
- 1× Cable for digital video transmitter (HD VTX)
- 1× Analog video cable
- 1× Cable for LED and buzzer
