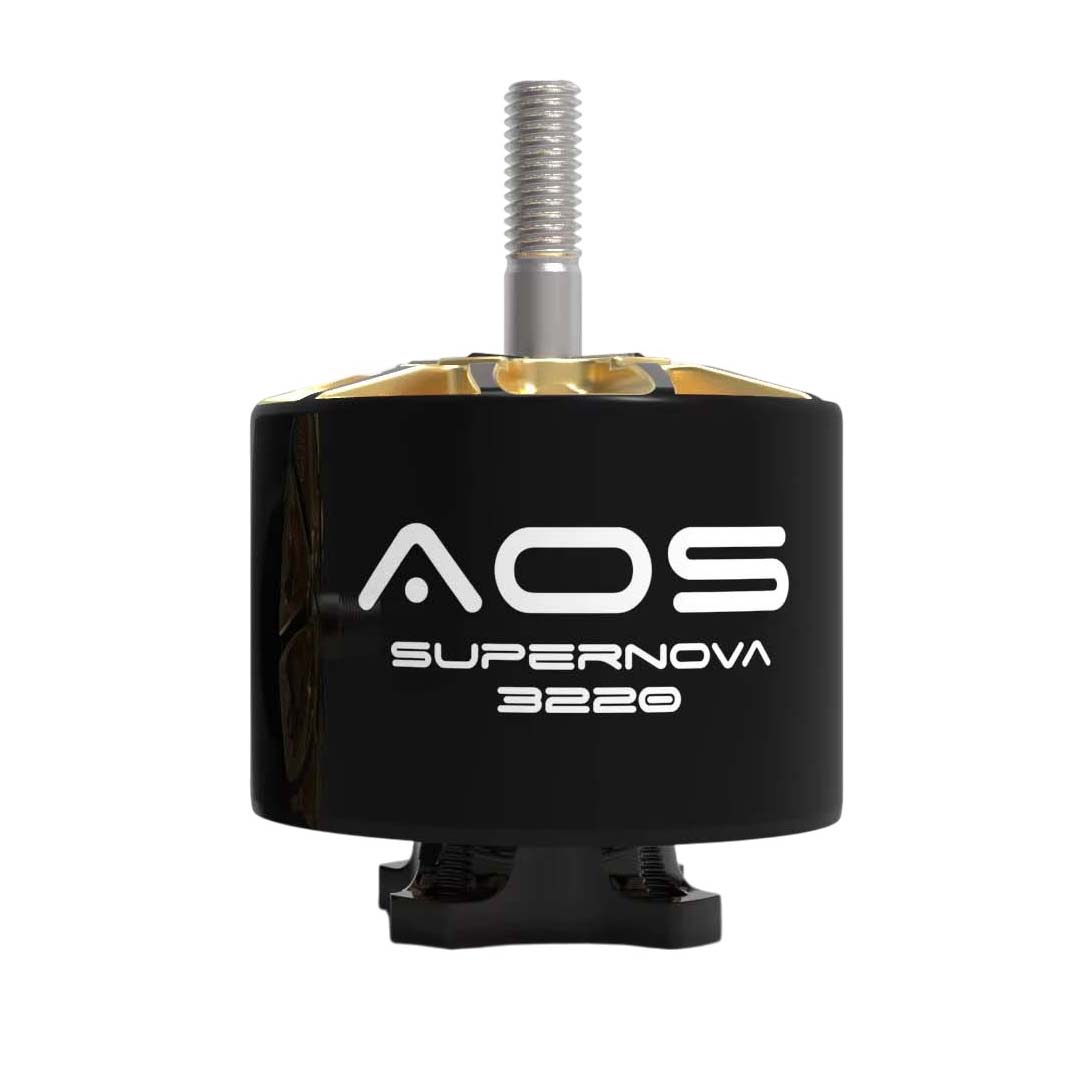

AOS Supernova 3220 1000Kv

AOS Supernova 3220 1000Kv is a powerful motor suitable for 10" propellers and 5-6S LiPo batteries. It is suited for heavier long-range drones, cinelifters and VTOL aircraft where a large power reserve is needed. The motor is part of the Supernova series, designed by Chris Rosser based on his own FPV motor performance model. It is manufactured in collaboration with RCinPower.

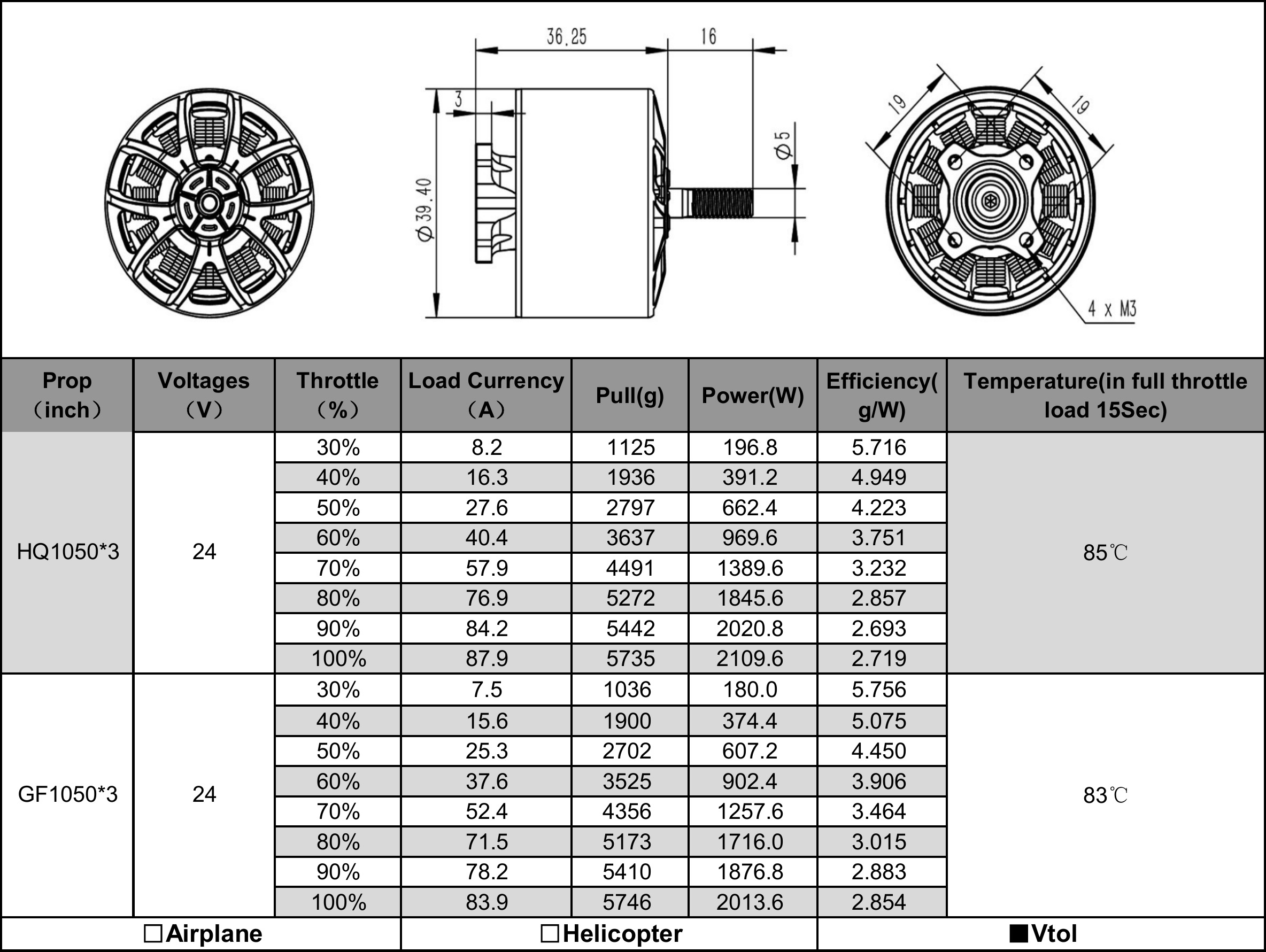

Compared to the 700Kv version, the motor has higher RPM, resulting in significantly higher thrust and current draw. The 32x20mm stator with a 12N14P configuration delivers up to 5.7kg of thrust at 24V with an HQProp 10x5x3 propeller, drawing 87.9A and producing 2110W of power. Peak efficiency, over 86%, is in the 6-13A range.

The motor has a hollow 5mm shaft and M3 19x19mm mounting holes. With a diameter of 39.4mm and a length of 36.25mm, it weighs 170 grams. Since it draws up to 87.9A at full throttle, we recommend ESCs with a continuous current rating of at least 90A and a battery capable of handling such current draw across all motors.
