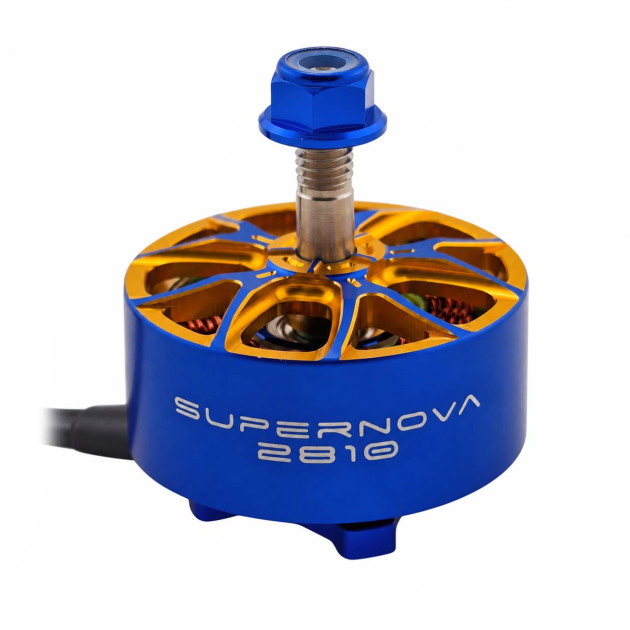

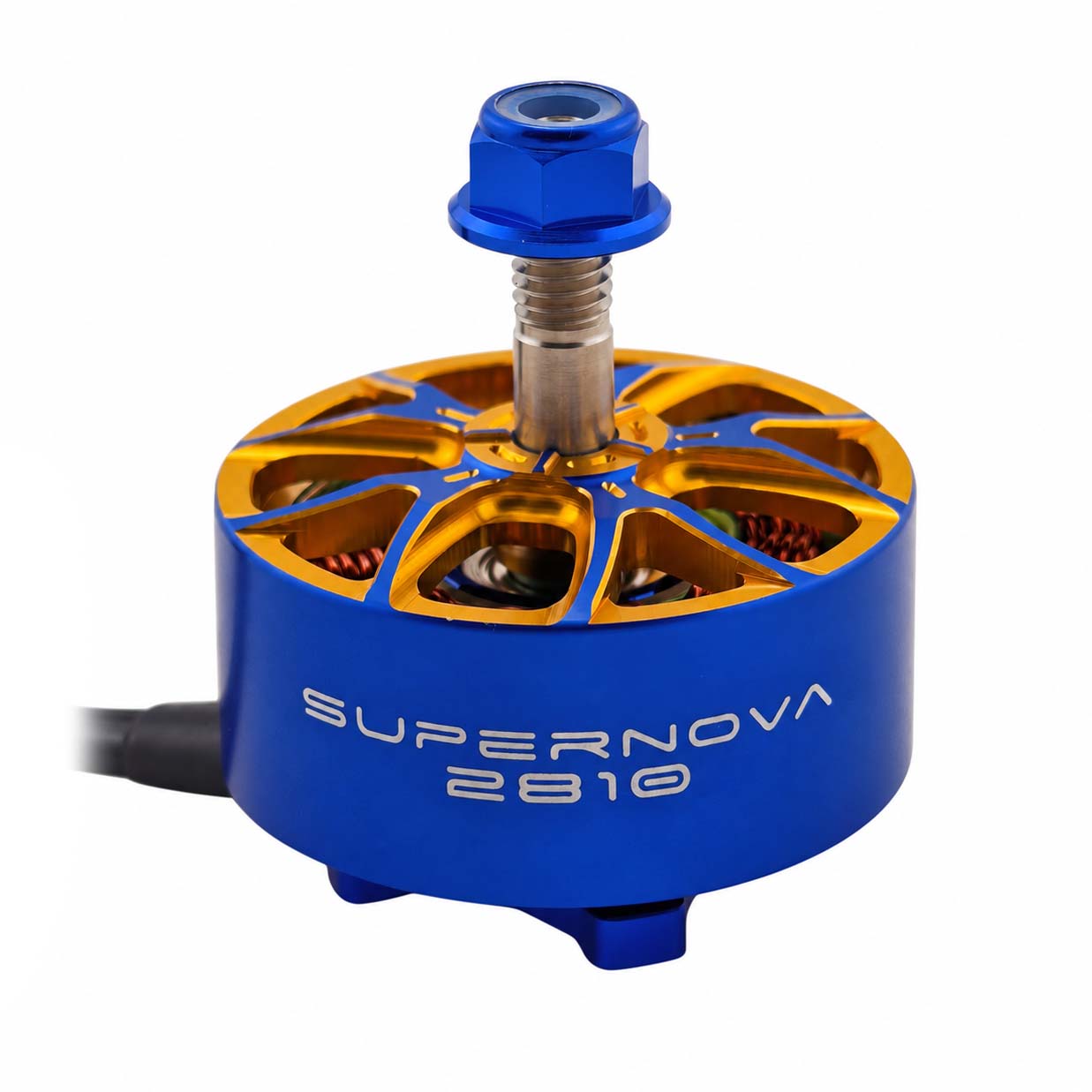

AOS Supernova 2810 1150Kv

AOS Supernova 2810 1150Kv is a powerful motor suitable for 7-8" propellers and 4-6S LiPo batteries. It is suitable for long-range drones, airplanes, and VTOL aircraft. The motor belongs to the Supernova series, designed by Chris Rosser based on his own FPV motor performance model. It is manufactured in collaboration with RCinPower.

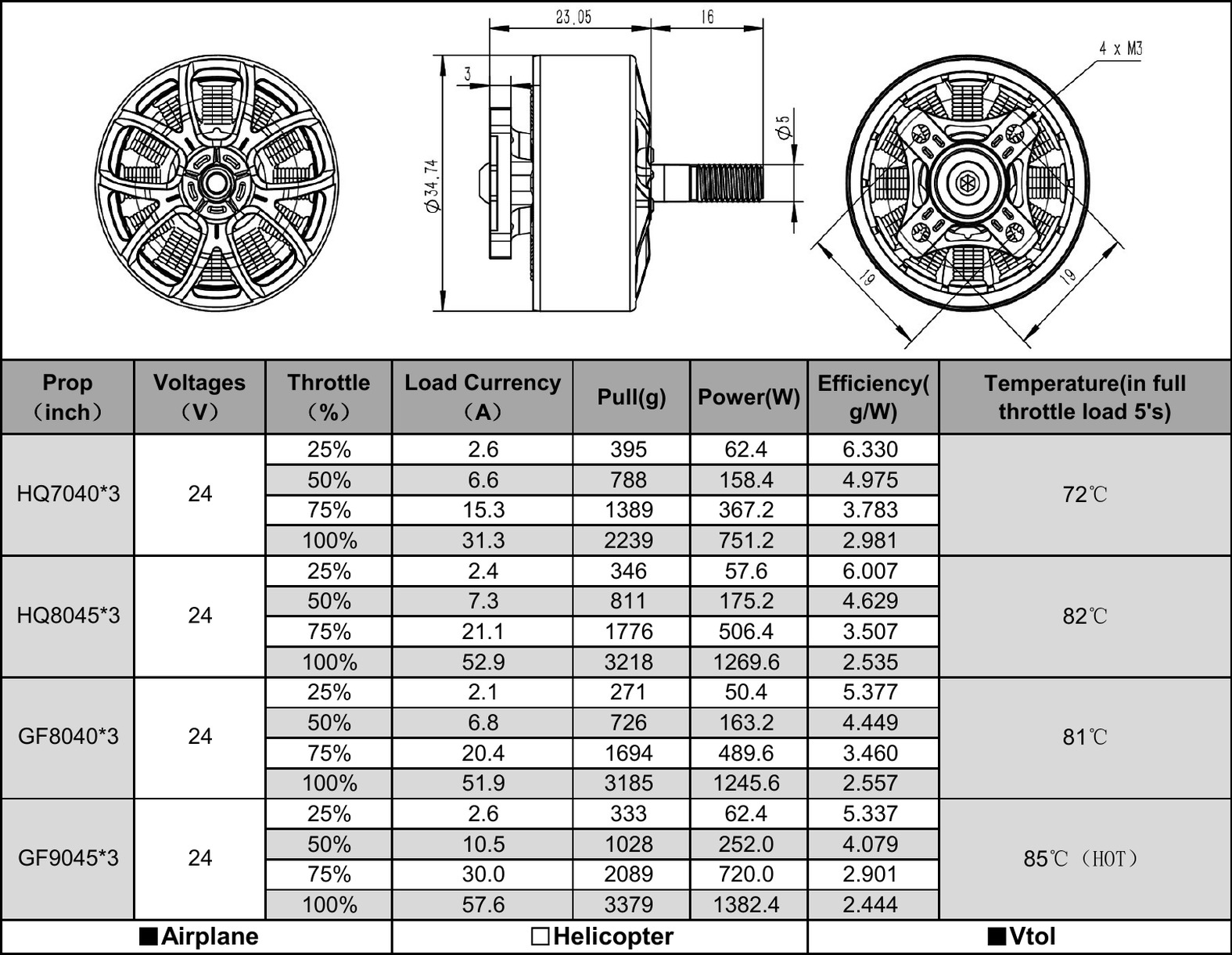

The 28x10mm stator with a 12N14P configuration is the same as on the 900Kv version, but the higher Kv makes the motor more suitable for smaller propellers. At 24V with an HQProp 8x4.5x3 propeller, it produces up to 3.22kg of thrust at 52.9A and 1270W; with a 7" HQProp 7x4x3 propeller, it produces 2.24kg at 31.3A. The motor reaches its highest efficiency, over 87%, in the 2-6A range, making it well suited for long flights at lower throttle. With a 9" propeller, the motor can produce up to 3.38kg, but it heats up to 85°C at full throttle, so we do not recommend this combination.

The motor has a hollow threaded shaft with a diameter of 5mm and M3 19x19mm mounting holes. With a diameter of 34.74mm and a length of 23.05mm, it weighs 75 grams. Since the motor draws up to 57.6A at full throttle, we recommend ESCs with a continuous current rating of at least 60A.
