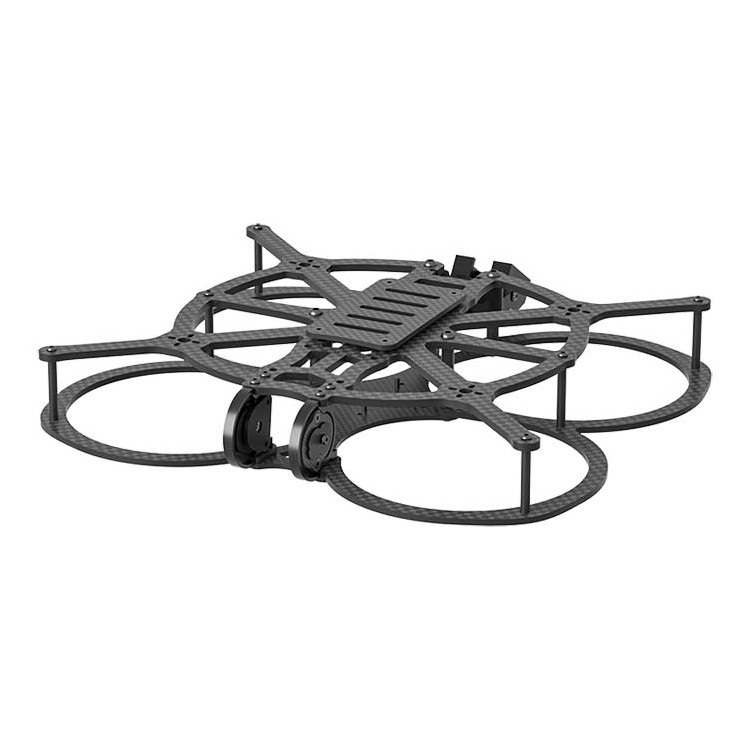

The AOS Cine35 V5 is a premium frame for building a larger 3.5" cinewhoop drone. 3.5" cinewhoops are particularly suitable for outdoor flying. Thanks to their ample power, they can easily carry a standard GoPro camera. The drone uses carbon fiber prop guards that are both strong and lightweight. It supports builds with both analog and digital video transmission, including DJI O3 and O4 Pro. The camera is mounted in aluminum side plates. The FPV camera is positioned far enough forward that the frame is not visible in the video feed, even up to a 155° FOV. This is especially appreciated by users of digital video systems who also use the unit for HD recording. The AOS Cine35 V5 supports mounting an action camera both forward and rearward, allowing you to capture both front-facing and rear-facing footage.
Key Features
- Diagonal distance of motors: 153mm
- Size: 223x203x36,5mm
- Thickness of top plate: 3mm
- Thickness of bottom plate: 2mm
- Height for stack: 25mm
- Mounting holes for stack: 20x20/25.5x25.5mm M2
- Mounting holes for VTX: 20x20/25.5x25.5mm M2
- Mounting holes for motors: 9/12mm M2
Package Includes
- 1x Frame
- 1x TPU 3D prints
- 2x Lipo strap
- 2x Battery tray
