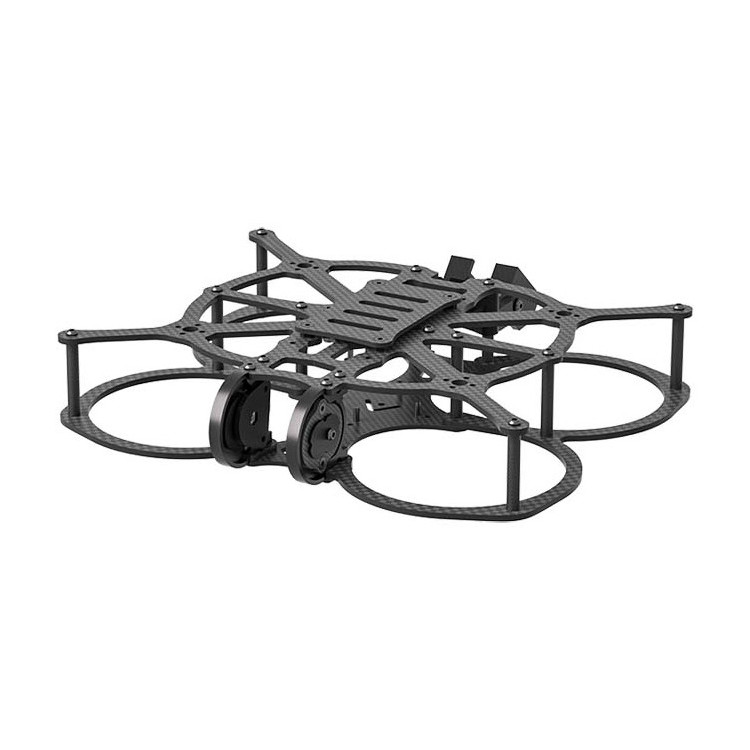

The AOS Cine25 V5 is a top-tier frame for building a compact 2.5" cinewhoop drone. It features carbon fiber propeller guards that are both strong and lightweight. The drone can be built with either analog or digital video transmission, including support for DJI O3 and O4 Pro. The camera is mounted in aluminum side plates. The FPV camera is positioned far forward enough that no parts of the frame are visible in the FPV feed, even with up to 155° FOV. This is especially appreciated by users of digital systems that also record HD footage. The AOS Cine25 V5 supports mounting an action camera both forward and rearward, allowing you to capture footage from both perspectives.
Key Features
- Diagonal motor spacing: 120mm
- Size: 171x147x34mm
- Thickness of top plate: 2mm
- Thickness of bottom plate: 1.5mm
- Height for stack: 25mm
- Mounting holes for stack: 20x20/25.5x25.5mm M2
- Mounting holes for VTX: 20x20/25.5x25.5mm M2
- Mounting holes for motors: 9mm M2
User Guides
Package Includes
- 1x Frame
- 1x TPU 3D prints
- 2x Lipo strap
- 2x Battery tray
