AOS 5 V5.1

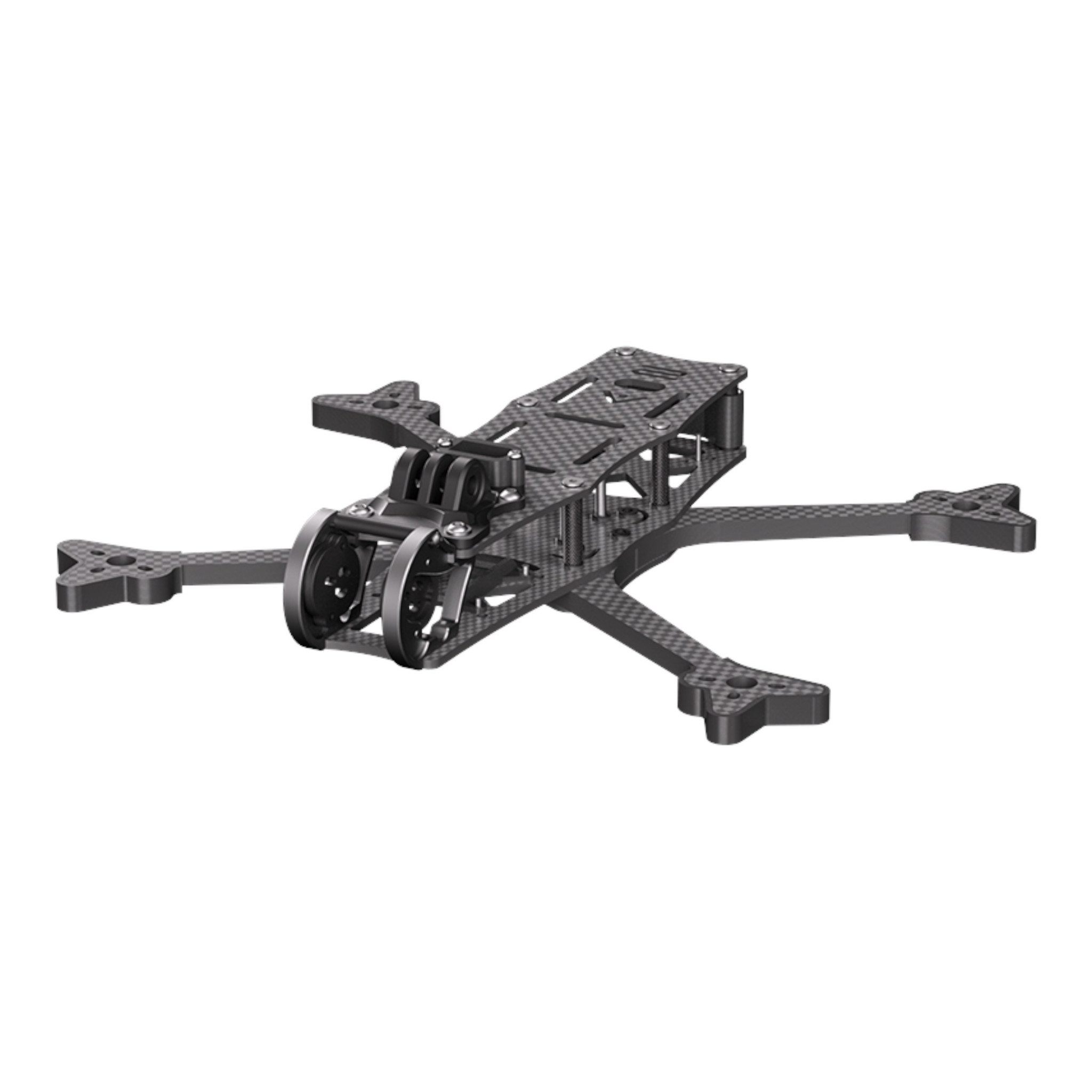

AOS 5 V5 is a unique freestyle frame appreciated by beginners and the most demanding pilots alike. The frame features a unique stack mounting method - the so-called X-Cell mount. The part of the bottom plate where the stack is mounted is connected to the rest of the frame only at 4 small points located at the nodes of a standing wave. This transfers less unwanted vibration to the flight controller gyro. This makes it possible to use less aggressive filters and higher PID values, resulting in better flight characteristics. For further vibration reduction, the frame uses durable arms made of 6mm thick carbon.AOS 5 V5 is designed as a freestyle frame for building a drone with analog and digital video transmission (DJI O3 - 20cm cable required, HDZero, Walksnail Avatar. The frame also fits 5,2" propellers. The camera is extended sufficiently forward, so the edges of the propellers are not visible in the image. The camera is protected by a cage made of durable 7075-T6 aluminum alloy. The frame supports stacks with 20x20mm and 30,5x30,5mm M3 mounting patterns. In the front and rear part of the frame there is space for mounting additional stacks with 20x20/25,5x25,5/30,5x30,5mm spacing. The top plate has a securely mounted XT60 connector, which makes battery handling easier and minimizes the chance of cables getting caught in the propellers. The battery can be mounted on the top plate in the traditional lengthwise way, or rotated 90° crosswise. The frame supports motors with 16mm and 19mm M3 mounting holes.
