AOS 5 V5

In Stock
€ 98,19

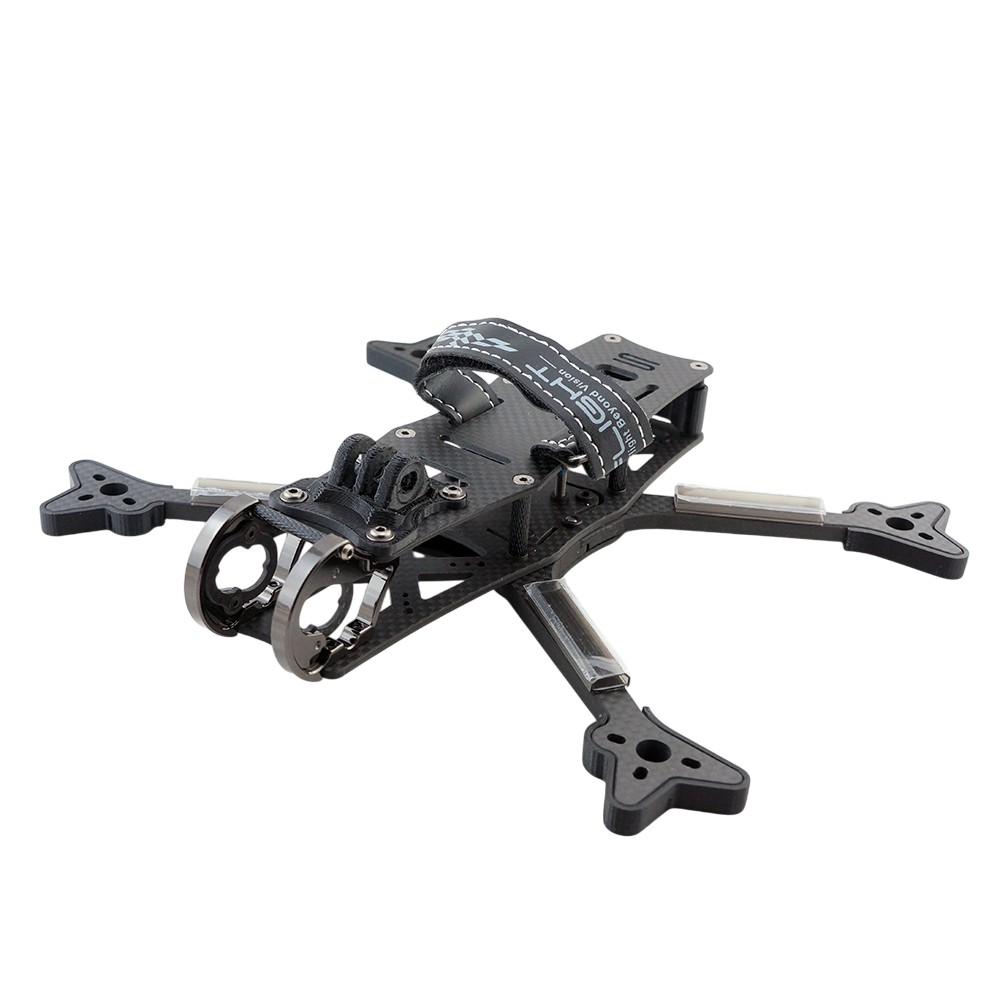

AOS 5 V5 is a unique freestyle frame that will be appreciated by beginners as well as by the most demanding pilots. The frame is unique in the way the stack is attached - the so-called X-Cell mount. The part of the bottom plate where the stack is mounted is connected to the rest of the frame only on 4 small parts, which are placed in standing wave nodes. Thanks to this, less unwanted vibrations are getting into the gyro of the flight controller. This allows less aggressive filters and higher PID values to be used, resulting in better flight performance. To further minimize vibration, the frame uses durable arms made of 6mm thick carbon fiber.AOS 5 V5 is designed as a freestyle frame for building a drone with analog and digital transmission (DJI O3 - 20cm cable required, HDZero, Walksnail Avatar). Frame can be used with up to 5.2" propellers. The camera is mounted forward enough so that the edges of the propellers are not visible in the FPV feed. The camera is protected in a cage made of durable 7075-T6 aluminum alloy. The frame accommodates both 20x20mm and 30.5x30.5mm M3 hole spacing stacks. There is space for mounting additional stacks with 20x20/25.5x25.5/30.5x30.5mm hole spacing in the front and rear of the frame. XT60 connector is fixed on the top plate, which makes the battery easier to handle and minimizes the chance of cables getting tangled in the propellers. The batteries can be mounted on the top plate in the conventional way lengthwise, but also rotated 90° widthwise. The frame can accommodate motors with both 16mm and 19mm M3 mounting holes.

Key Features

  • Weight: 150g
  • Size: 180x140x34mm
  • Arm thickness: 6mm
  • Max. propeller size: 5.2"
  • Diagonal distance of motors: 228mm
  • Height for stack: 20mm
  • Stack mounting hole spacing: 30.5x30.5mm M3 / 20x20mm M3
  • VTX mounting holes spacing: 30.5x30.5mm M3 / 25.5x25.5mm M2 / 20x20mm M2
  • Mounting holes for GoPro mount: 32x32mm M3
  • Motor mounting holes: 16/19mm M3
  • Camera size: 20/19mm (14mm with 3D printed adapter)

Package Includes

  • 1x Frame
  • 1x TPU parts
  • 2x Lipo strap
  • 1x Screw set
