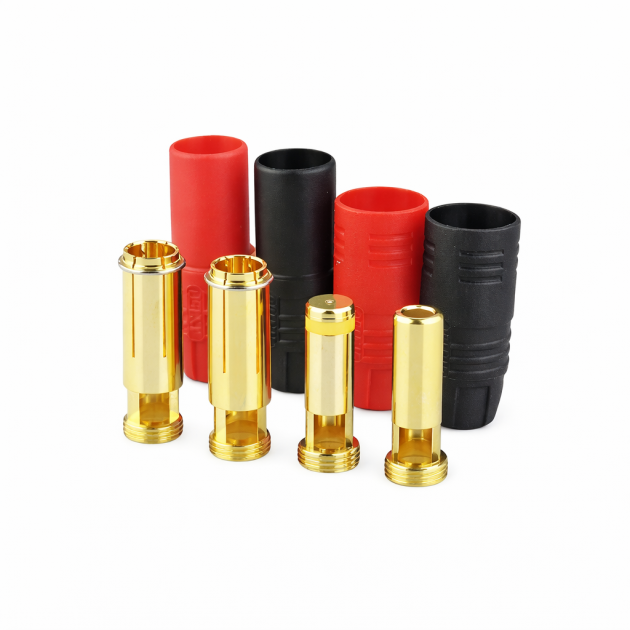

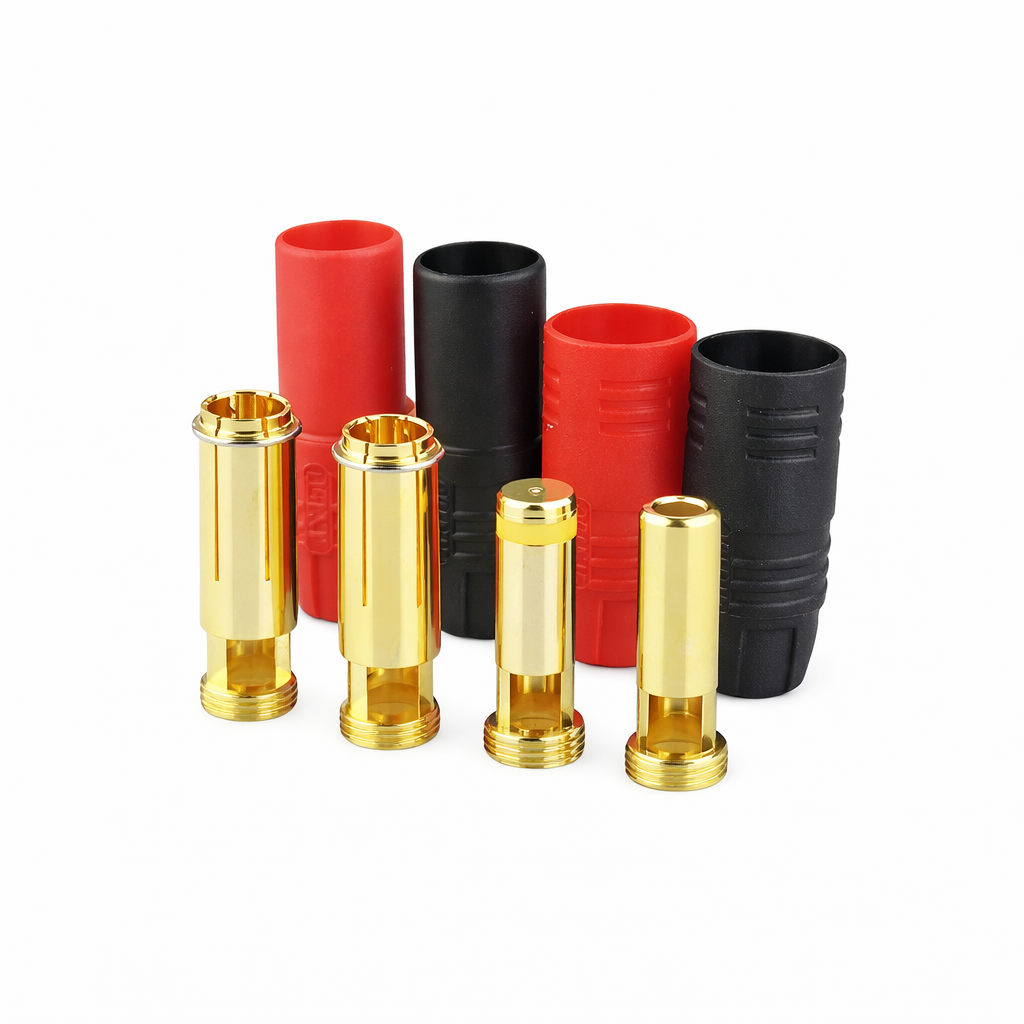

AS150 connector suitable for high-performance cinelifters and other high current applications. The connector is designed with antispark, where the connection first occurs through an integrated resistor, allowing the capacitors on the regulators to charge with a controlled current. This prevents undesirable sparks during connection, which can damage the connector and increase the contact resistance. AS150 connectors can be easily chained and are thus suitable for connecting multiple battery packs in series.
Key Features
- Max. cable thickness: 8AWG
- Plastic: PA
- Continuous current: 70A
- Peak current: 150A
- Max. voltage: 500V
Package Includes
- 2x Male
- 2x Female
- 4x Cover
