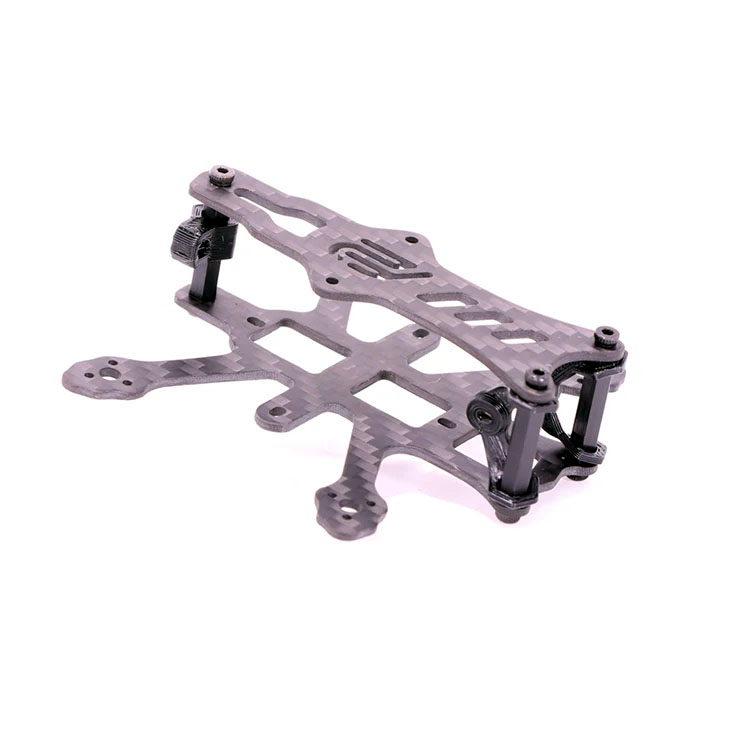

AlfaRC Rocky 1.4" is a miniature frame for building a 1-2S drone with 1.4" (35mm) propellers. A drone of this size is ideal for flying outdoors in the garden or at the park.
The frame is cut from 1.5mm thick carbon and weighs only 8.5 grams. It provides 18mm of vertical space for installing an AIO board with 25.5x25.5mm mounting pattern. The frame supports nano-size cameras and 0802 motors or similar. The battery can be mounted using a rubber band or a 3D printed holder designed for batteries with a 13x6mm cross-section.
Key Features
- Diagonal motor distance: 75mm
- Carbon thickness: 1.5mm
- Height for stack: 18mm
- Mounting holes for stack: 25.5x25.5mm M2
- Mounting holes for motors: 6.6mm M1.4
- Propeller size: up to 35mm (1.4")
- Camera size: 14mm (Nano)
- Weight: 8.5g
Package Includes
- 1x Frame
- 1x 3D printed battery holder
