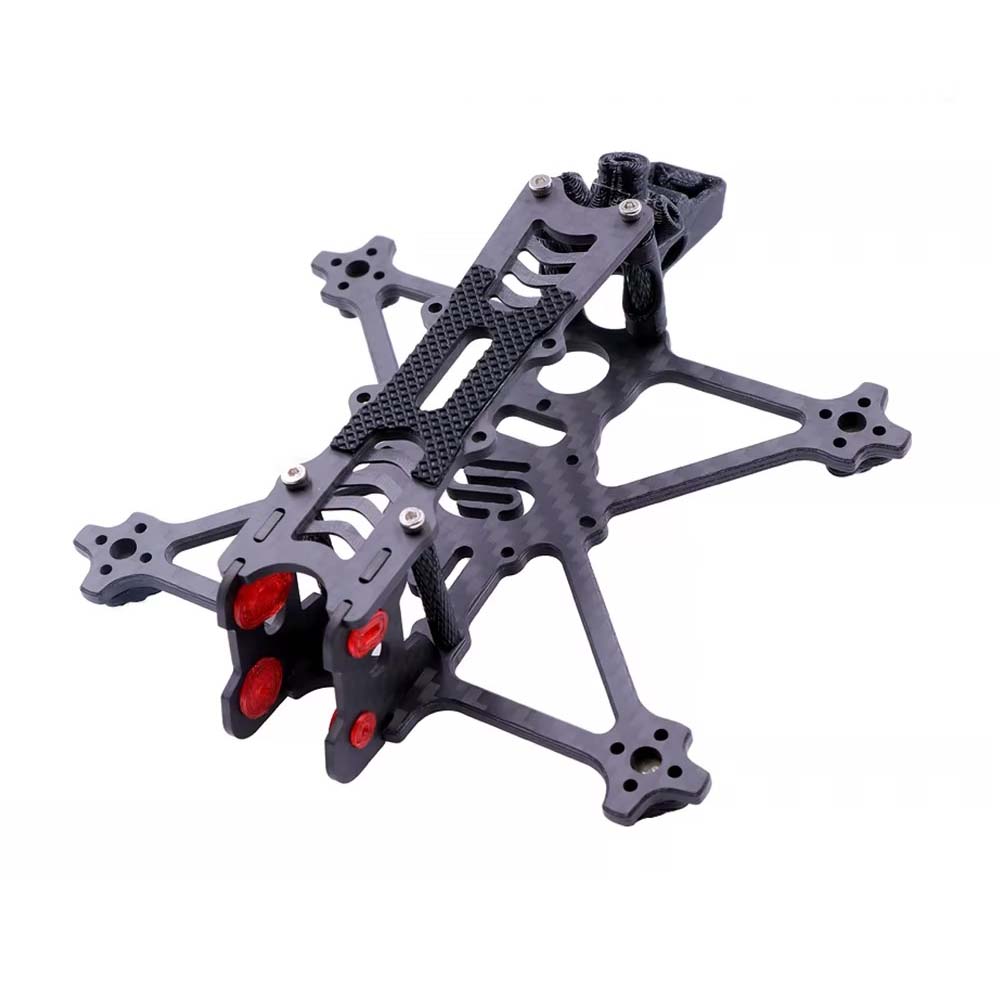

The AlfaRC Fi-115 is a compact 2.5" frame designed primarily for building a freestyle drone suitable for flying in the garden or park. The Fi-115 features a bottom plate made from 3mm thick carbon fiber. Combined with triangle-shaped arms, the frame is both stiff and durable. It has mounting holes with a 20x20mm pattern for standard stacks and 25.5x25.5mm for AIO boards. The top plate includes 20x20mm M2 mounting holes for easy installation of a video transmitter. The frame comes with a 3D-printed mount for a GPS module measuring 17x12.5x5mm and for an FPV antenna. It is designed for nano-size cameras as well as the DJI O4 camera, with the camera mounted using soft TPU inserts to help reduce vibrations.
Key Features
- Diagonal distance of motors: 115mm
- Thickness of arms: 3mm
- Thickness of top plate: 2mm
- Propeller size: 2.5" (65mm)
- Camera size: 14mm (Nano)/ DJI O4
- FC mounting holes: 20x20/25.5x25.5mm M2
- Height for stack: 24mm
- Motor mounting holes: 9mm M2
- Weight: 27g
Package Includes
- 1x Frame
