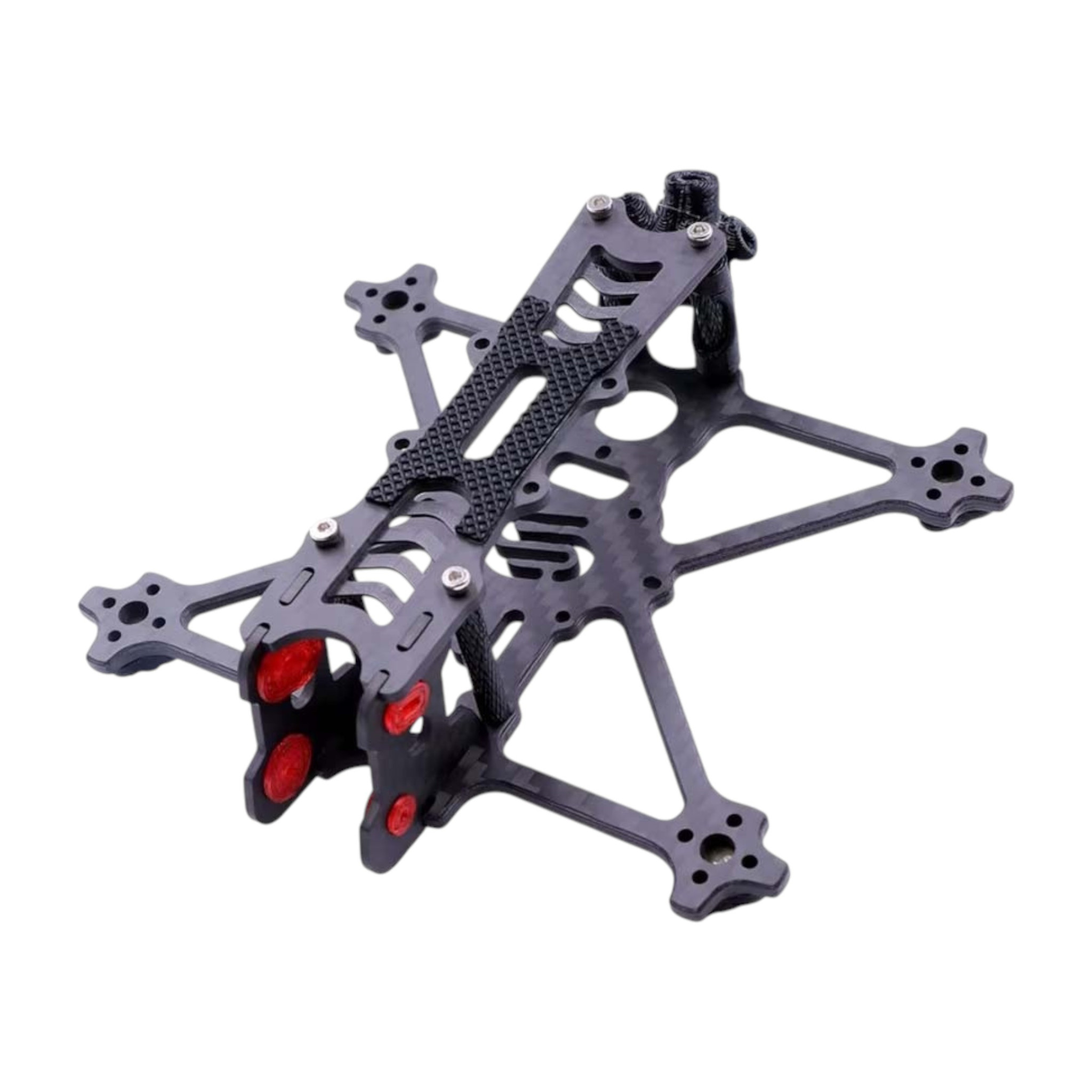

AlfaRC Fi-115 V4 is a small 2.5" frame designed primarily for building a freestyle drone suitable for flying in the garden and in the park. The Fi-115 frame has a bottom plate made of 3mm thick carbon. Combined with the triangular arms, the frame is stiff and durable. The frame has mounting holes with a 20x20mm spacing for standard stacks and 25.5x25.5mm for AIO boards. The top plate has 20x20mm M2 mounting holes for easy mounting of the video transmitter. The frame includes a 3D printed FPV antenna mount. The frame is designed for nano size cameras and for the DJI O4 camera. The camera is mounted using soft TPU inserts, which help filter out vibrations.
3D printed GPS mount is not included.
Key Features
- Motor diagonal distance: 115mm
- Arm thickness: 3mm
- Top plate thickness: 2mm
- Propeller size: 2.5" (65mm)
- Camera size: 14mm (Nano)/ DJI O4
- FC mounting holes: 20x20/25.5x25.5mm M2
- Stack height: 24mm
- Motor mounting holes: 9mm M2
- Weight: 27g
Package Includes
- 1x Frame
