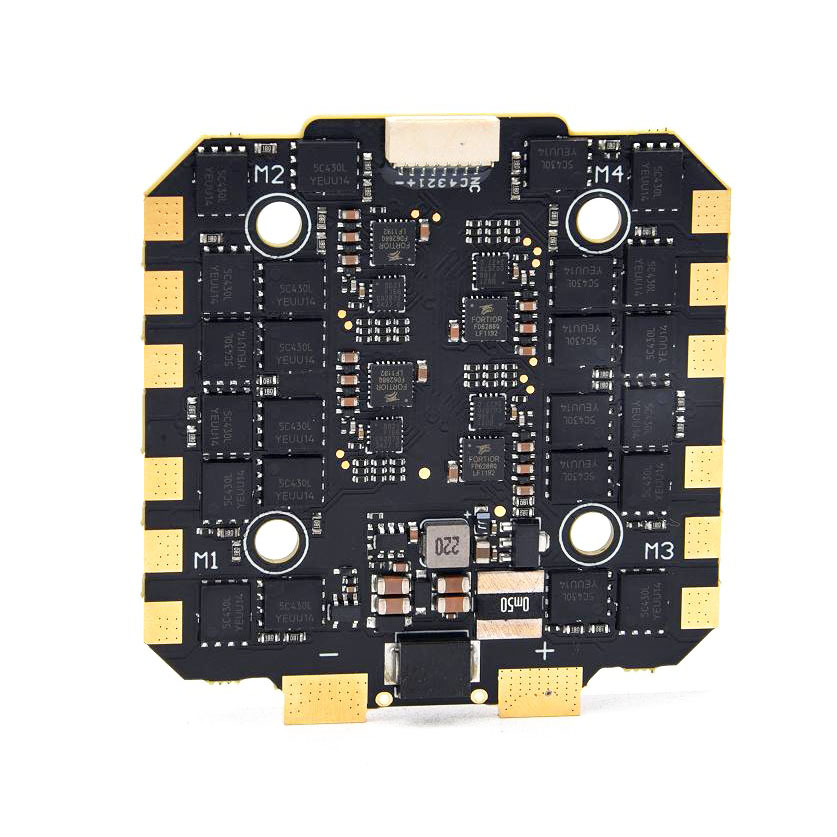

A high-performance ESC capable of handling up to 80A current and up to 8S battery input. This ESC is therefore especially suitable for larger 10-14" drones. To manage the high current, it uses a doubled number of MOSFETs. An external electrolytic capacitor must be connected to the ESC. The ESC has larger dimensions of 56x59x6mm. Make sure your frame has enough space. The mounting holes follow the standard 30.5x30.5mm pattern with M4 holes – ideal to use with soft mounts (not included).
Key Features
- Power supply: 3-8S
- Firmware ESC: Bluejay
- Maximum current: 80A
- Current sensor: Yes (scale 200)
- Mounting holes: 30.5x30.5mm M4 (M3 with softmount)
- ESC size: 57x59x6mm
- ESC weight: 29g
Package Includes
- 1x ESC
- 1x XT90 connector with 12AWG cable (14cm)
- 1x Interconnect cable
- 2x Capacitor
