SuperRC 533
In Stock
€ 32,79

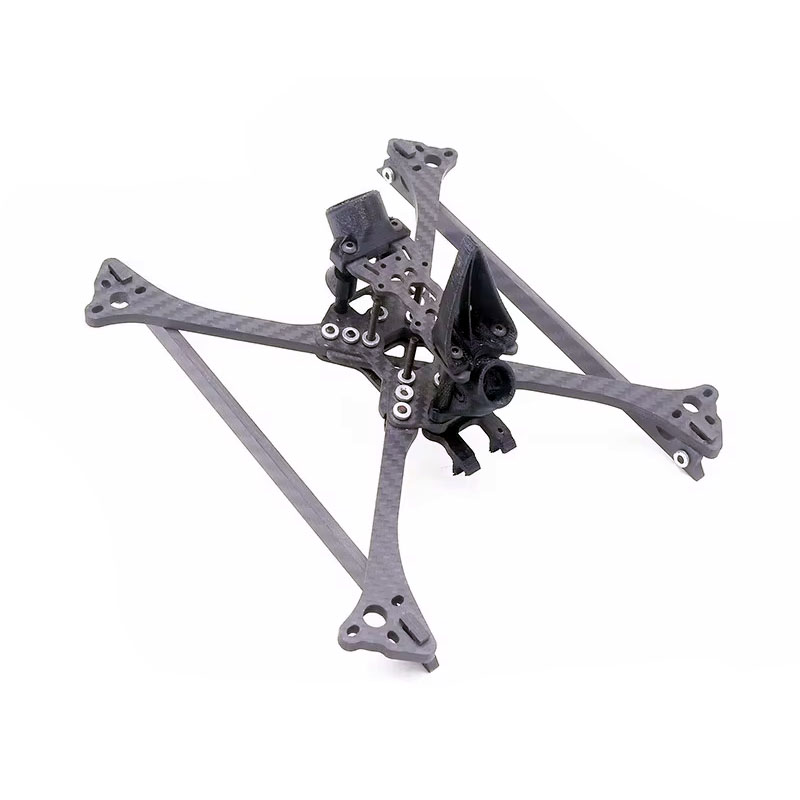

SuperRC 533 is an affordable 5" racing frame with side reinforcements. The frame uses 5mm thick arms. It is designed for stacks with hole spacing of 20x20mm and 30.5x30.5mm M3. The top plate has mounting holes 20x20mm M2 for easy attachment of the videotransmitter. It accommodates motors with mounting holes 16mm and 19mm and cameras of size Nano (14mm) and Micro (19mm) with a maximum angle of up to 50°.
Included with the frame are 3D printed parts including a fin for easy drone rotation in grass. The weight of the frame is approximately 112 grams.
Key Features
- Diagonal distance of motors: 210mm
- Thickness of arms: 5mm
- Thickness of side reinforcements: 4mm
- Thickness of bottom and top plate: 2mm
- Mounting holes for stack: 20x20/30.5x30.5mm M3
- Mounting holes for VTX: 20x20/mm M2
- Mounting holes for motors: 16/19mm M3
- Camera size: 14mm (Nano), 19mm (Micro)
- Maximum camera angle: approx. 50°
- Weight: 112g
User Guides
Package Includes
- 1x Frame
- 1x Screw set
- 2x 3D printed camera mount
- 1x 3D printed fin
- 1x Lipo strap 16x250
- 1x File
- 1x Anti-slip pad
