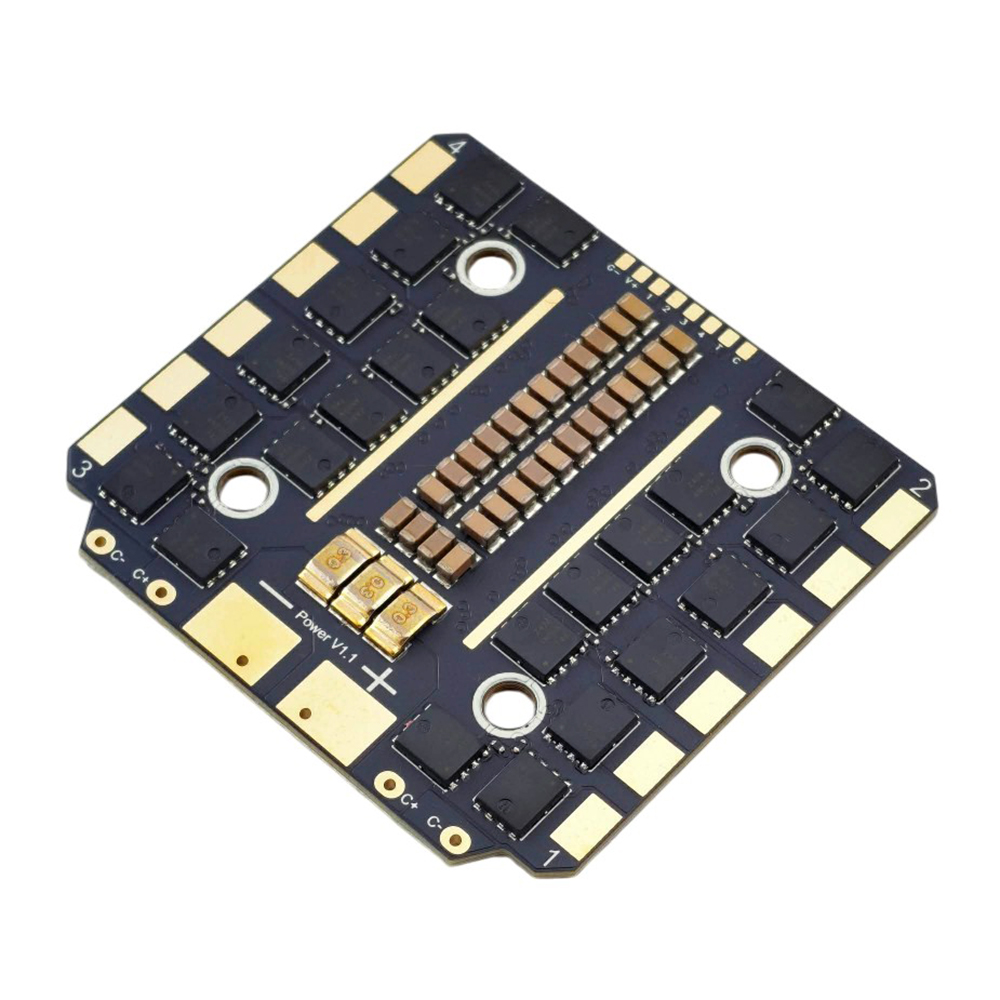

Powerful 4in1 ESC designed for large 13-15" FPV drones powered by 3–8S LiPo. The ESC has a mounting pattern of 30.5 × 30.5 mm. Next to the battery input are pads for easy soldering of the included capacitors.
The ESC uses the MCU EFM8BB51F16G and supports the BLHeli_S firmware with the option to flash to Bluejay. The maximum current is 100 A per channel. The board includes TVS protection against voltage spikes and a current sensor. The dimensions of the board are 58 × 53.2 × 6.4 mm and the weight is approximately 30 grams.
The package includes an XT90 connector with 10AWG cable.
Key Features
- Input voltage: 3-8S
- Max current: 100 A
- MCU: EFM8BB51F16G
- Firmware: BLHeli_S E_X_40
- TVS diode protection
- Current sensor: Yes
- Mounting holes: 30.5 × 30.5 mm
- Size: 58 × 53.2 × 6.4 mm
- Weight: 30 g
Package Includes
- 1x ESC
- 1x XT90 with 10AWG cable
- 2x 1000uF 63V capacitor
- 1x Set of soft mounts
