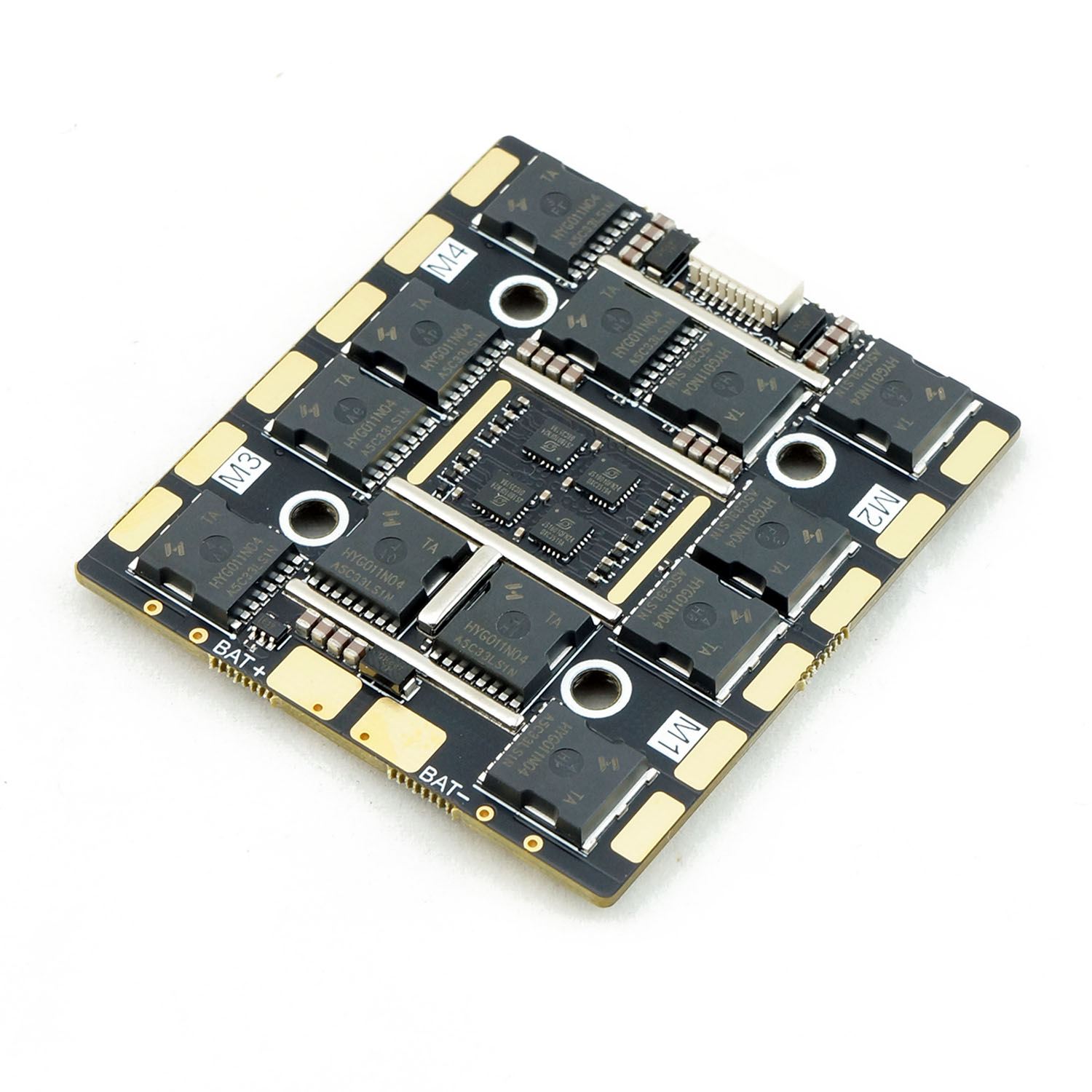

A high-performance ESC capable of handling up to 100A and supporting up to 8S batteries. This makes it particularly suitable for larger 10–15" drones. To handle the high current, the ESC is equipped with a doubled number of MOSFETs. External electrolytic capacitors must be connected to the ESC. It has larger dimensions of 57.6x62.8mm, so ensure there is enough space in your frame. The mounting holes have the standard 30.5x30.5mm spacing with M4 size – best used with soft mounts (not included). The ESC runs on BlHeli_S firmware.
Key Features
- Input voltage: 3-8S
- Firmware ESC: BlHeli_S
- Maximum current: 100A (120A Burst)
- Current sensor: Yes (scale 95)
- Mounting holes: 30.5x30.5mm M4 (M3 with softmount)
- ESC size: 57.6x62.8mm
- ESC weight: 40g
Package Includes
- 1x ESC
- 1x Interconnect cable
- 1x XT90 with cable
- 2x Capacitor
