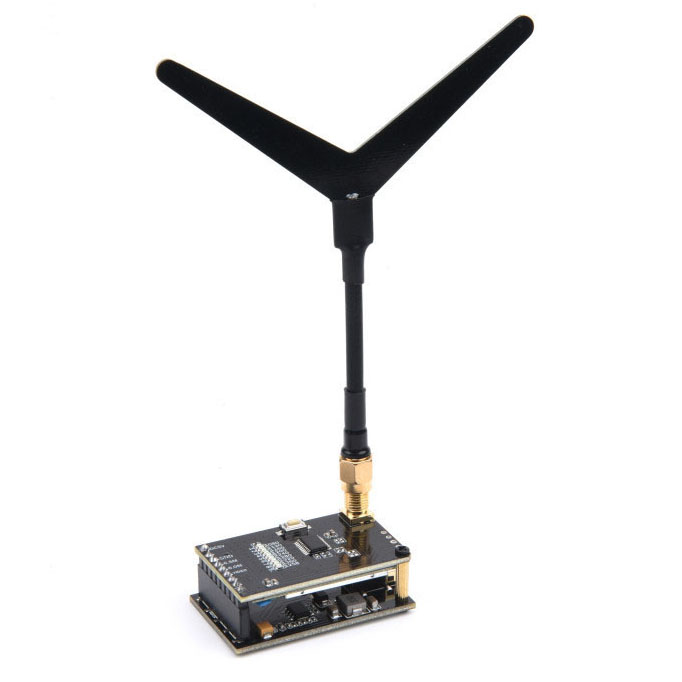

Readytosky VRX is an external analog video receiver for frequencies 1.2/1.3 GHz. The receiver is suitable for long-range FPV systems. It supports 9 channels within the range of 1080–1360 MHz and can be directly connected to FPV goggles with AV input (FatShark, Skyzone) or to an analog monitor. The receiver sensitivity reaches -97 dBm. Channels are switched by a short press of a button. The current channel is indicated by 9 red LEDs. The antenna connects via an SMA connector. The receiver supports both PAL and NTSC video systems and is powered by 5V.
| CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 | CH9 |
|---|---|---|---|---|---|---|---|---|
| 1080 MHz | 1120 MHz | 1160 MHz | 1200 MHz | 1240 MHz | 1280 MHz | 1320 MHz | 1360 MHz | 1258 MHz |
Key Features
- Power supply: 5 V
- Frequency range: 1080–1360 MHz
- Sensitivity: −95 dB to +5 dB
- Video system: PAL/NTSC
- Number of channels: 9
- Output voltage RSSI: 0.7–1.3 V
- Dimensions: 44 × 27 × 27 mm
- Weight: 20 g
Package Includes
- 1x Receiver
- 1x Antenna
- 1x Connecting cable
- 1x Jack cable
