Diatone Mamba F405 MK2 + 40A ESC

Discontinued
€ 92,79

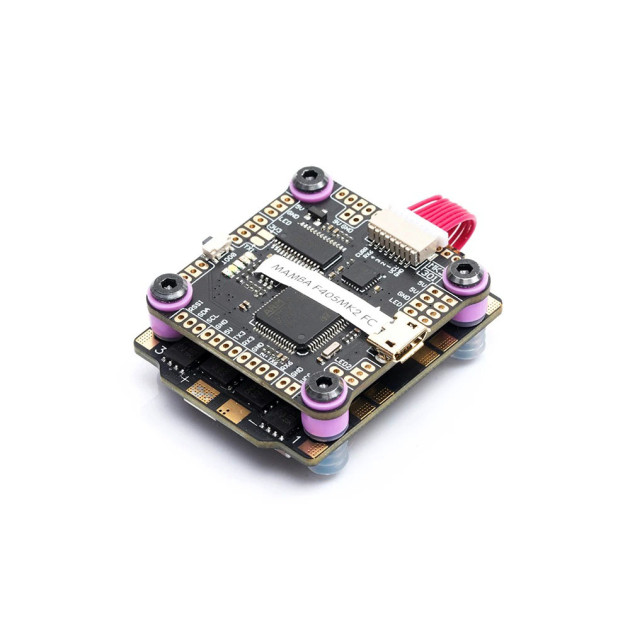

Diatone Mamba F405 MK2 + 40A ESC is a combination of F4 control unit and 40A ESC at a favorable price. The control unit uses a reliable IMU unit MPU6000, has 16MB memory for blackbox, OSD, 5V and 9V BEC and can be powered by 3-6S batteries. The controller uses the BlHeli_S firmware, has a current sensor and supports the supply of 3-6S batteries. An external filter capacitor must be connected to the controller.


Unlike more advanced and more expensive stacks, it lacks things like a barometer, a connector for connecting a DJI FPV or support for RPM filters. However, it has all the basic features you need, and if you're looking for an affordable stack that gets you in the air, this is the right choice.

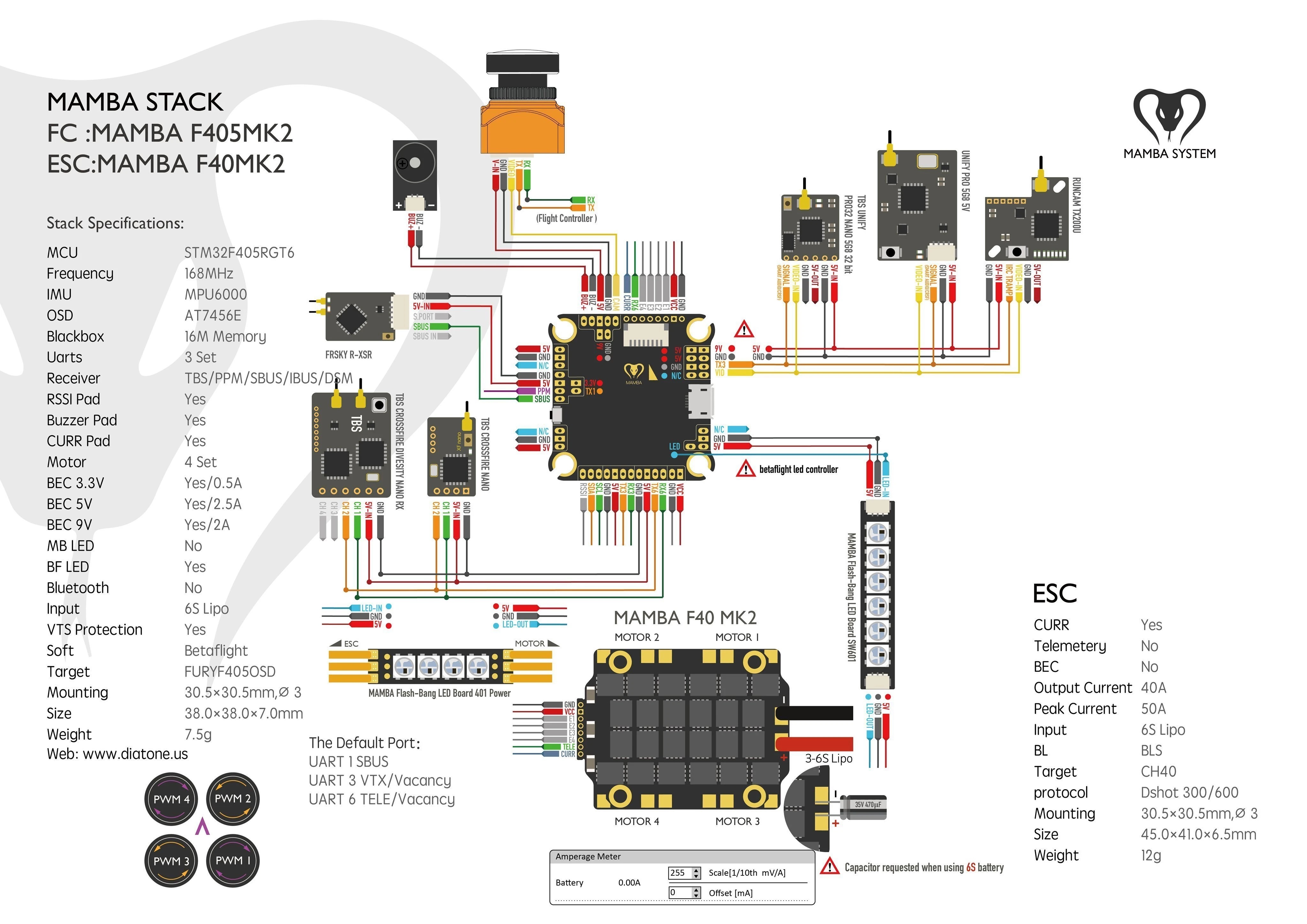

You will find the wiring diagram HERE.

Key Features

  • Processor: STM32F405RGT6
  • IMU unit: MPU6000
  • Blackbox: 16MB memory
  • Number of UARTs: 3
  • BEC: 5V@2.5A, 9V @ 2A
  • Input voltage: 3-6S
  • BF Target: FURYF405OSD
  • Mounting holes: 30.5x30.5mm M3
  • FC size: 38x38x7mm
  • ESC size: 45x41x6.5mm

Package Includes

  • 1x Control unit
  • 1x ESC
  • 1x Accessory set
