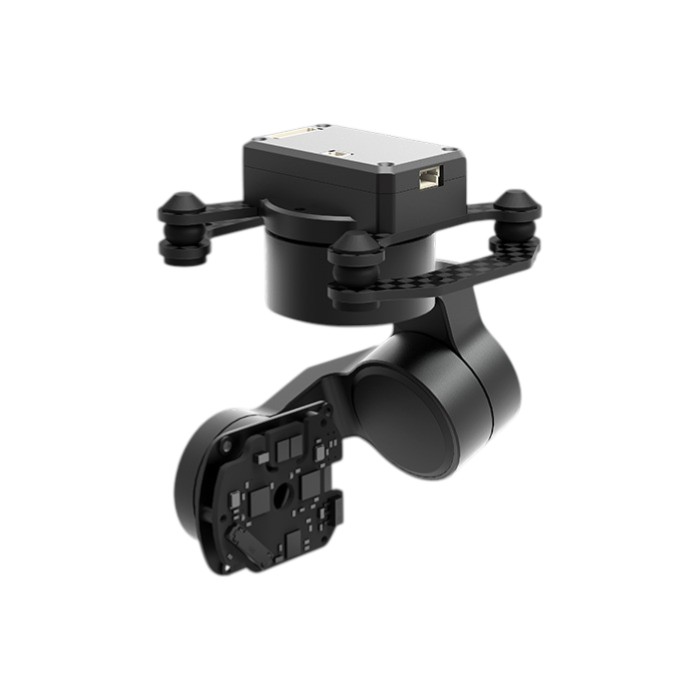

XF C-40T 3-axis gimbal - 40g universal

C-40T is a 3-axis gimbal designed for cameras and payloads up to 40g. The gimbal is suitable for use on drones and other unmanned vehicles where precise stabilization is required. C-40T can be powered by a voltage of 7.4–26.4V. The gimbal can be installed camera down or up as needed.

The C-40T gimbal can be controlled via S.BUS, CRSF, PWM or through the MAVLink protocol, which is supported in combination with autopilots ArduPilot and PX4. The gimbal can also be connected directly to a headtracker, which transmits the pilot's head movements directly to the gimbal. The gimbal offers seven modes, including classic FPV mode, horizontal stabilization, tilt lock, or ortho-view mode for a vertical downward view. The gimbal allows the setting of three preset modes, which can be easily switched between. Sensitivity can also be adjusted, affecting the response speed to drone/RC model movements.

The gimbal can be configured via PC using GimbalConfig software. This program is used not only for setting parameters but also for firmware updates and calibration. Parameters can be stored in the gimbal’s memory or in files for easy reuse.

The gimbal includes protective features, such as tilt protection, which disables control when a set angle is exceeded to prevent damage. For more complex applications, the Carrier AHRS Fusion feature is available, which allows data from GNSS and inertial sensors of the drone to be transmitted via the MAVLink protocol, further enhancing accuracy and stability.

More information

A USB adapter is required for PC setup, which is not included in the package.
