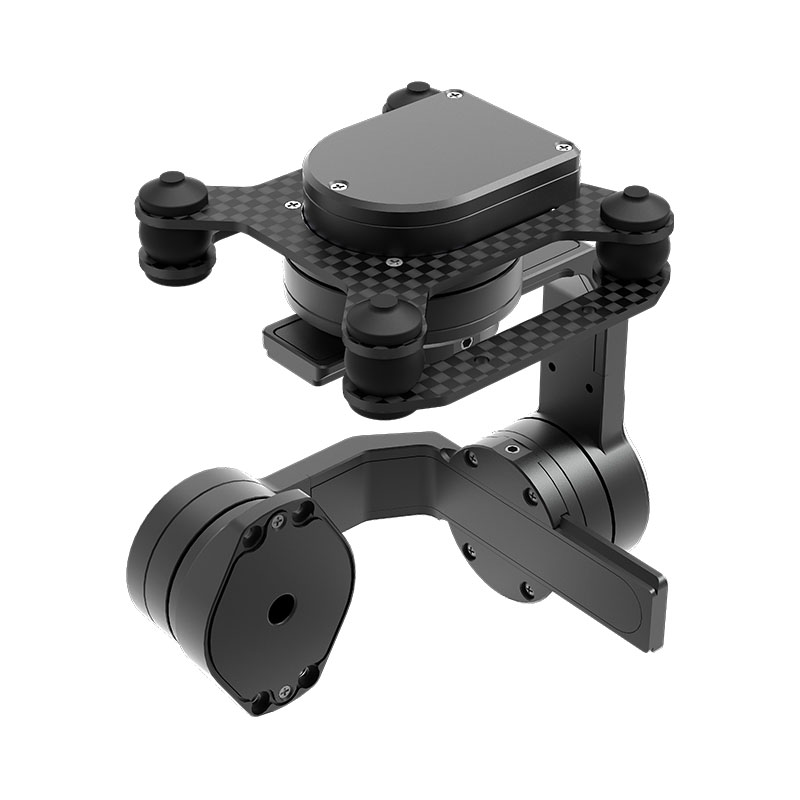

XF C-200T 3-axis gimbal - 200g universal

C-200T is a 3-axis gimbal designed for cameras and payloads up to 200g. The gimbal is suitable for use on drones and other unmanned vehicles where precise stabilization is required. C-200T can be powered by 12–18V. The gimbal can be installed camera down or up as needed.

The C-200T gimbal can be controlled via S.BUS, CRSF, PWM or through the MAVLink protocol, which is supported in combination with ArduPilot and PX4 autopilots. The gimbal can also be directly connected to a headtracker, which transmits the pilot's head movements directly to the gimbal. The gimbal offers seven modes, including classic FPV mode, horizon stabilization, tilt lock, or ortho-view mode for a vertical look down. The gimbal allows for the setup of three preset modes that can be easily switched between. Sensitivity can also be adjusted, affecting the response speed to movements of the drone/RC model.

The gimbal can be configured via PC using GimbalConfig software. This program is used not only for parameter settings but also for firmware updates and calibration. Parameters can be stored in the gimbal's memory or in files for easy reuse.

The gimbal includes protective features, such as tilt protection, which disables control if a set angle is exceeded, preventing damage. For more complex applications, the Carrier AHRS Fusion function is available, allowing data from GNSS and inertial sensors to be transmitted via the MAVLink protocol, further enhancing accuracy and stability.

More information

A USB adapter is required for PC setup, which is not included in the package. The gimbal is delivered without a third motor cover - see image.
