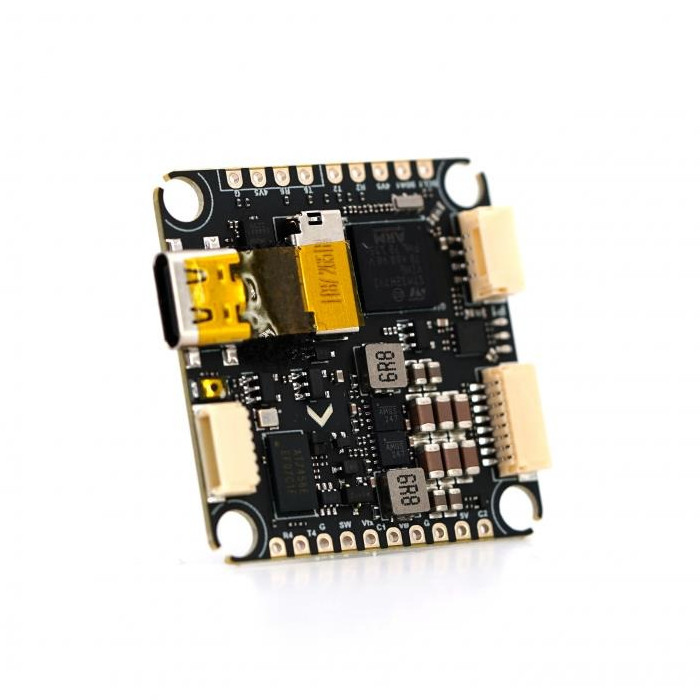

TBS Lucid H7 is a high-performance flight controller powered by the STM32H743VIH6 microprocessor. It supports Betaflight, iNav, and Ardupilot firmware and can be powered by a 2-8S LiPo battery. The board features dual IMUs (ICM42688) and a DPS310 barometer for altitude measurement.
The Lucid H7 is designed for extensive peripheral connectivity. It includes a microSD card slot, 12 PWM outputs, and one LED output. It also features two I2C buses and a CAN bus. With 6 ADC inputs, it supports two voltage sensors, two current sensors, an analog airspeed sensor, and analog RSSI. The board offers two switchable analog camera inputs and is equipped with a 5V/2A BEC and a 9V/2A BEC.
Key Features
- MCU: STM32H743VIH6 with 480 MHz, 1MB RAM and 2MB Flash
- Gyro: 2x ICM42688
- OSD chip: AT7456E
- Barometer: Infineon DPS310
- PWM outputs: 13 channels, including dedicated LED.
- Blackbox: MicroSD card slot
- Number of UARTs: 7
- I2C bus: 2x
- CAN bus: 1x
- Analog inputs: 6 ADC channels (VBAT, current, RSSI, analog AirSpeed, Vbat2, Cur2).
- LED indicators: 3 LEDs (blue, green for FC status, red for 3.3V power supply).
- Connector: USB-C (USB 2.0 standard)
- Input for two cameras
Package Includes
- 1x Flight controller
- 1x Interconnect Cable
- 1x DJI Cable
- 1x Screw Set
- 1x Softmount Kit
