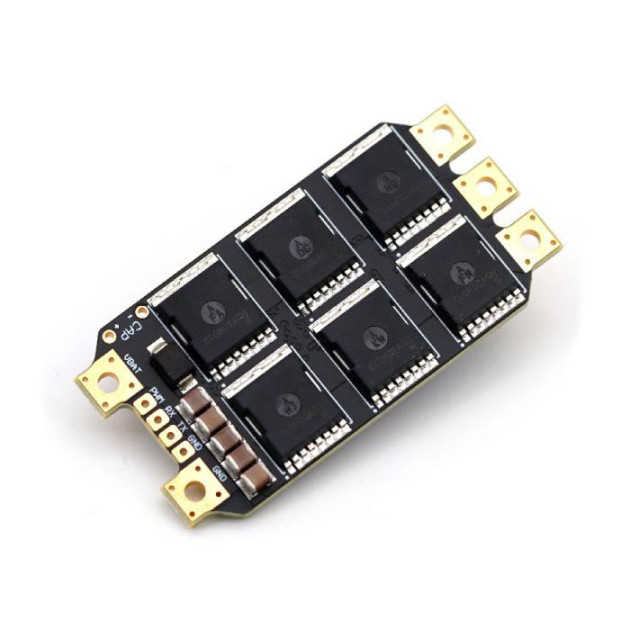

TBS Lucid 90A 3-12S AM32

TBS Lucid 12S 90A ESC is a powerful controller suitable for cinewhoops, larger long-range drones or model aircraft. The controller can be powered by up to 12S LiPo batteries and can handle a short-term current of up to 120 A.

The controller is built on an 8-layer PCB. The design is optimized for efficient heat dissipation without aluminum heat sinks, allowing for high performance at low weight. The integrated TVS protection suppresses voltage spikes and protects the electronics. The controller uses modern firmware AM32, which supports bidirectional DShot and KISS telemetry. The controller is equipped with a current sensor.

The rated current of the controller is 70 A for 60 seconds or 90 A for 40 seconds, with a maximum peak current of up to 120 A for 30 seconds. The controller is suitable for use with propellers up to 15", with proper airflow cooling required for propellers over 7".
