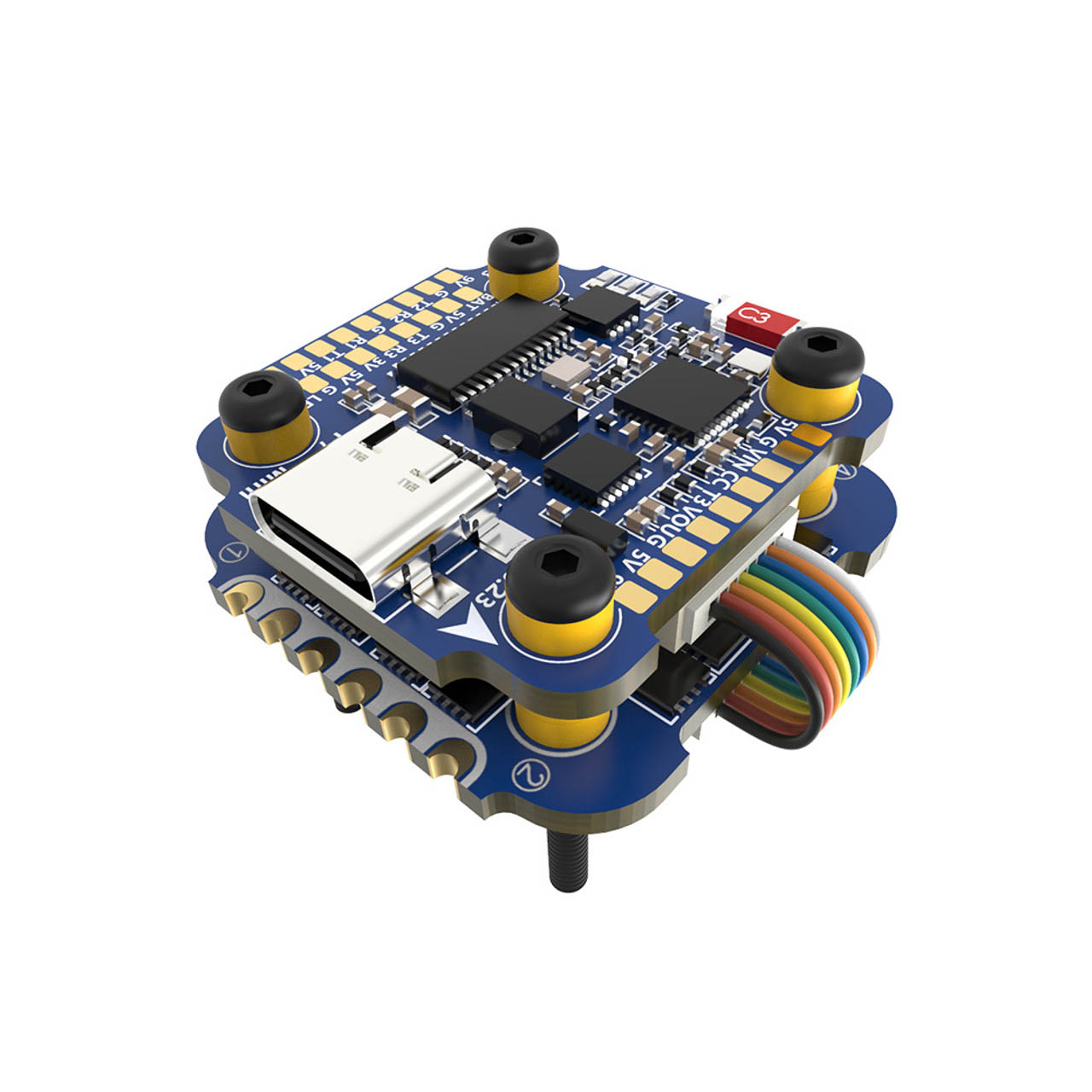

SpeedyBee F7 + 35A BLS Mini

In Stock
€ 102,59

SpeedyBee F7 Mini 35A is a combination of a flight controller and 35A ESC suitable for 2-4" drones, Cinewhoops or 5" ultralights. The main advantage of the stack is the possibility of wireless setup via Bluetooth. This will be especially appreciated on drones where the USB connector is hard to access. You can set up the flight controller and the ESC via your phone using the Speedybee app. Another advantage of the stack is the ability to install using both M2 and M3 screws.

The controller uses the F722 processor in combination with the Gyro BMI270. The board features both 9V and 5V BEC and 8MB of blackbox memory. The flight controller is also protected against voltage spikes by a TVS diode. The board has no I2C pads or barometer.

The ESC uses BlHeli_S firmware and can handle a continuous current of 35A per motor. The ESC also includes a TVS diode and current sensor (Scale: 250, Offset: -500).

English manual

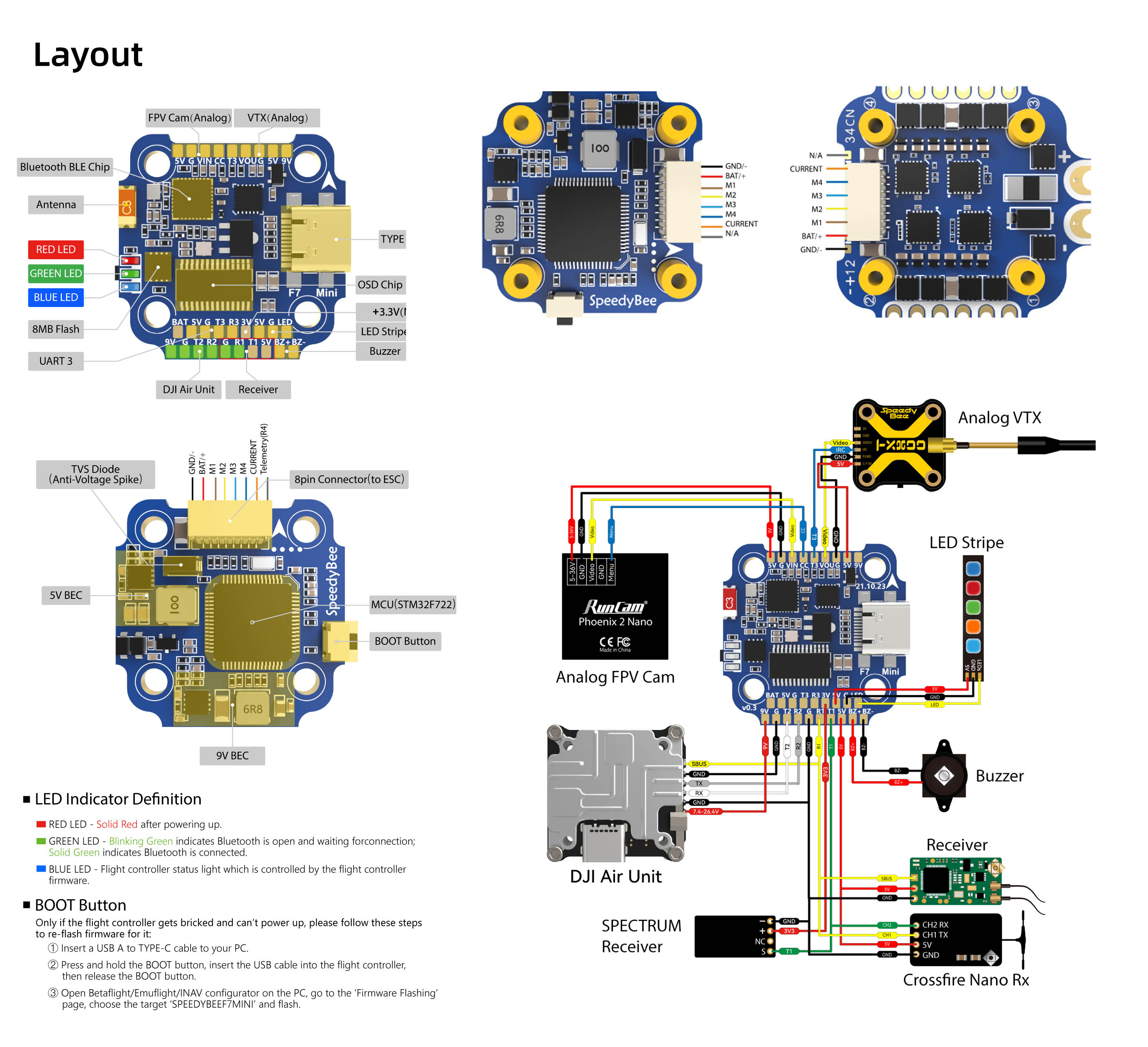

Wiring diagram

Key Features

  • Input voltage: 3-6S
  • Processor: STM32F722
  • IMU: BMI270
  • OSD: AT7456E
  • Bluetooth: BLE 4.0 - UART6, Baudrate 115200
  • Blackbox: 8MB
  • BEC: 5V@2,5A, 9V@2A
  • Mounting holes: Yes - Scale: 250 Offset: -500
  • I2C: No
  • Barometer: No
  • ESC FW: BlHeli_S
  • ESC Current: 35A 4x

Package Includes

  • 1x Flight controller
  • 1x ESC
  • 1x XT30 with cable
  • 1x Connection cable
  • 1x Capacitor 470uF 35V
  • 1x Set of M2 screws
  • 1x Set of M2 screws
  • 1x Set of soft mounts
