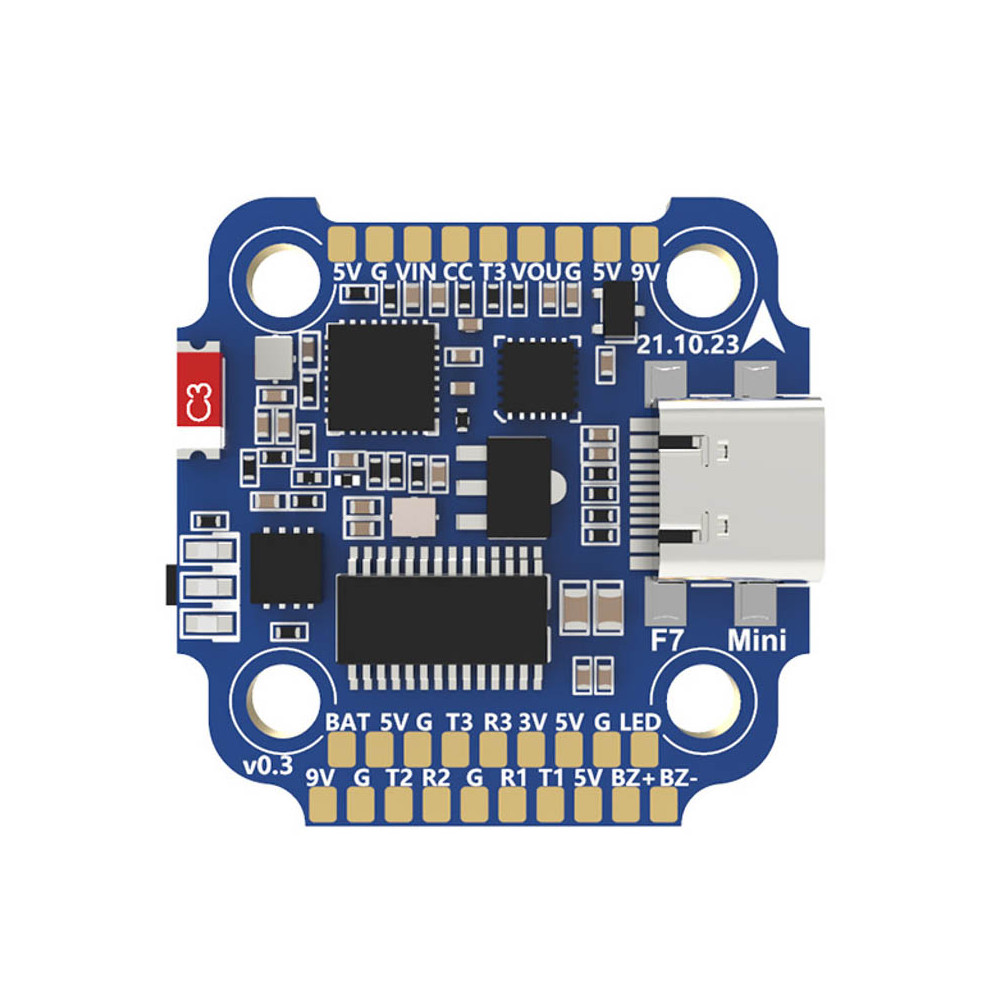

SpeedyBee F7 Mini

In Stock
€ 55,59

SpeedyBee F7 Mini is a flight controller with 20x20mm mounting hole spacing. It is suitable for smaller 2-4" drones, Cinewhoopy or racing drones. Its main advantage is the F7 processor and the possibility of wireless setup via Bluetooth. This will be especially appreciated on drones where the USB connector is hard to access.

The controller uses the F722 processor in combination with the Gyro BMI270. The board features both 9V and 5V BEC and 8MB of blackbox memory. With a pair of rubber softmounts, the board can be mounted with both M3 and M2 screws. The controller is also protected against voltage spikes by a TVS diode. The board has no I2C pads or barometer.

English manual

Key Features

  • Input voltage: 3-6S
  • Processor: STM32F722
  • IMU: BMI270
  • OSD: AT7456E
  • Bluetooth: BLE 4.0 - UART6, Baudrate 115200
  • Blackbox: 8MB
  • BEC: 5V@2.5A, 9V@2A
  • Mounting holes: 20x20mm M2/M3
  • Size: 30x30x7.5mm
  • Weight: 5,7g

Package Includes

  • 1x Flight controller
  • 1x ESC Interconnect Cable
  • 1x M2 Screw Set
  • 1x M3 Screw Set
  • 1x Softmount Set
