Skyzone SKY04O V2

On the way
Watch availability
€ 406,39

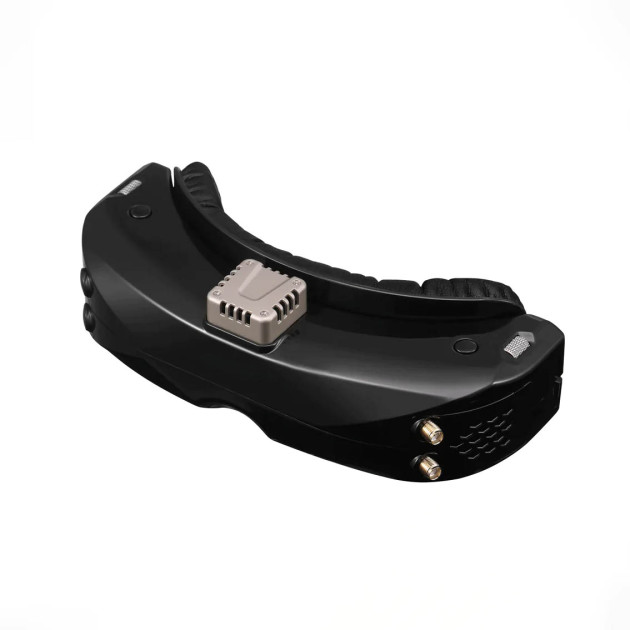

Skyzone SKY04O V2 are high-end goggles suitable especially for analog FPV transmission. The goggles use a pair of OLED displays that guarantee high contrast and rich colors. The displays have a resolution of 1024x768 pixels, which is sufficient for displaying both analog and digital video. The goggles have an adjustable eye distance of IPD 58-71mm and diopter correction of -6 to +2 .

The goggles are packed with features. The goggles include a Steadyview 5.8GHz receiver module that can combine video from both receivers simultaneously. Each receiver can also be tuned to a separate channel and the goggles can be used to view FPV video in 3D. The goggles can be powered via a USB-C connector or via a classic DC connector with a voltage of 6.5-25.2V (2-6S). The goggles also have a DVR and thus allow recording the received video to an SD card. The DVR uses H.264 encoding at 6Mbps and 60fps. There is also an integrated headtracking module, which will be especially appreciated by airplanes pilots. The goggles have an audio output for headphones, AV input for analogue video and HDMI input for digital video.

Key Features

  • Displays: OLED 1024x768px
  • FOV: 38°
  • Receiver: Skyzone Steadyview 48Ch. 5.8GHz
  • Aspect ratio: 4:3/16:9
  • Dioptric correction, 60fps, MOV 6Mbps
  • SD card: up to 128Gb
  • Integrated Headtracker
  • Antenna connector: SMA
  • Size: 185x75x67mm
  • Weight: 262g

Package Includes

  • 1x Goggles
  • 1x Steadyview Receiver
  • 2x Faceplate
  • 1x Power Cable
  • 1x Case
  • 2x FPV Antenna
  • 1x Cable Set
