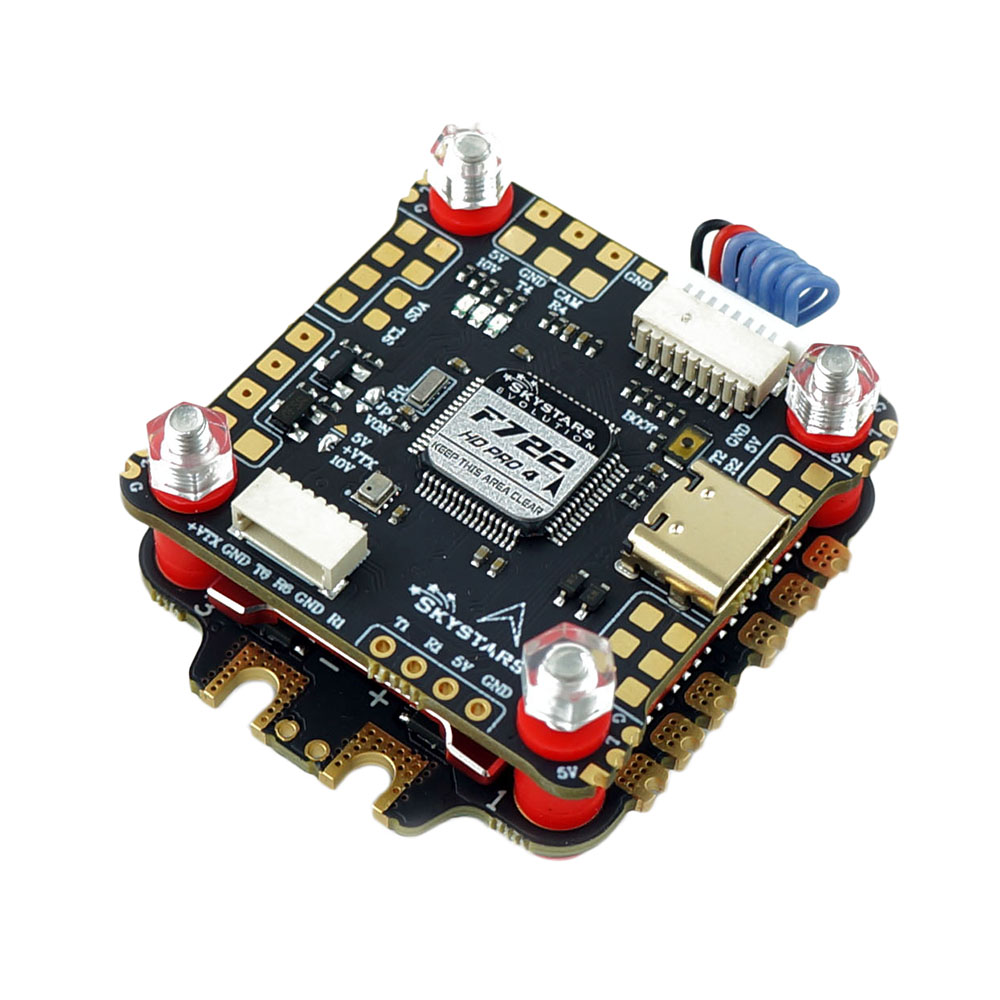

Skystars F7+KO60 is a powerful stack for freestyle and racing drones. The flight controller with a modern F7 processor has 16MB of blackbox memory and 5V/3A and 10V/3A BEC. The unit also has a connector for DJI FPV and OSD, so it can be easily used on a drone with digital or analog video transmission. The pads for connecting LEDs in the corners of the unit are also a nice touch. An integrated barometer for height measurement is also useful.
The KO60 regulator uses 32-bit AM32 firmware, which supports bidirectional dshot, telemetry, high PWM frequency, and other modern features. The regulator is based on a 6-layer PCB with 3oz thick copper. This allows the regulator to handle high currents. Large 5x6mm 40V Toshiba MOSFETs are used. For better cooling, the regulator is equipped with an aluminum heatsink. A capacitor that should be connected to the battery leads on the ESC is also included in the package.
Key Features
- Power supply: 3-6S
- Processor: STM32F722RGT6
- IMU: MPU6000
- Blackbox: 16MB
- Integrated barometer
- BEC: 5V@3A, 10V@3A
- Connector for DJI FPV
- Mounting holes: 30.5x30.5mm M3 (with soft mount)
- Current sensor
- ESC FW: AM32
Package Includes
- 1x Flight controller
- 1x Regulator
- 1x XT60 with cable
- 1x Capacitor
- 1x Accessory kit
