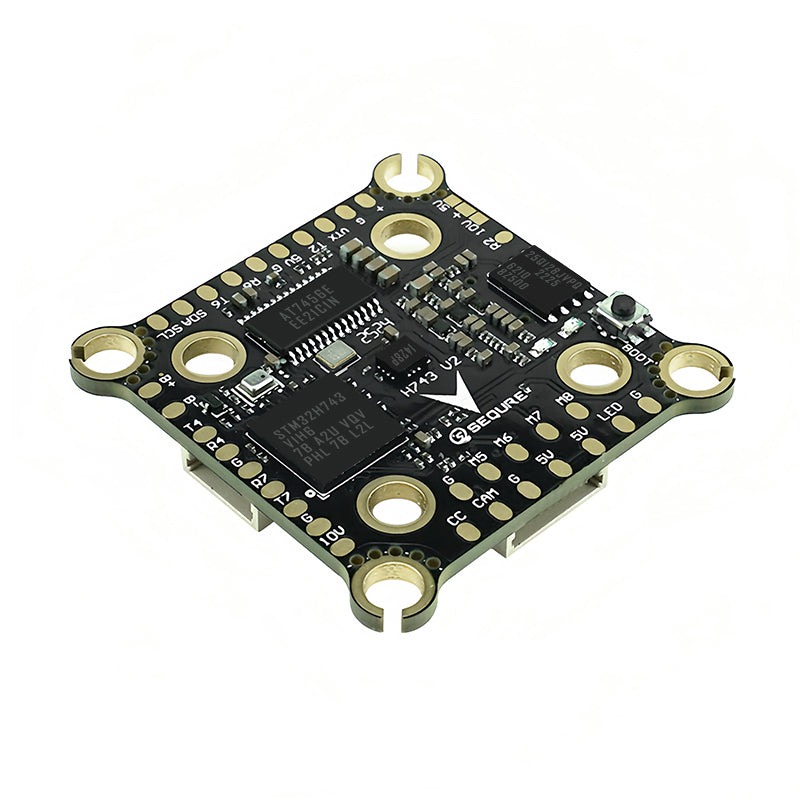

The Sequre H743 V2 is a high-performance flight controller designed for both freestyle and long-range drones. It supports 4–8S LiPo batteries and, thanks to the powerful STM32H743 processor, is compatible with Betaflight, iNav, and Ardupilot firmware. The board features 8 motor outputs and 6 UARTs. It comes equipped with an ICM42688P gyro, a BMP280 barometer for altitude measurement, 16MB of blackbox memory, and integrated 5V and 10V BECs. A connector for easy digital video transmission is available, as well as an OSD chip for analog video. The board includes mounting holes for both 20x20mm and 30.5x30.5mm patterns, making it suitable for a wide range of drones.
Key Features
- MCU: STM32H743
- Gyro: ICM42688
- OSD chip: AT7456E
- Barometer: BMP280
- Number of motor outputs: 8
- Blackbox: 16MB
- Number of UARTs: 6
- BEC: 5V/2.5A, 10V/2A
- I2C bus: Yes
- Connector: USB-C
- Mounting holes: 20x20/30.5x30.5mm M4 (M3 with soft mounts)
- Size: 36.5x36.5x6mm
- Weight: 7.3g
Package Includes
- 1x Flight controller
- 1x Cable Set
- 1x Softmount Set
- 1x Beeper
