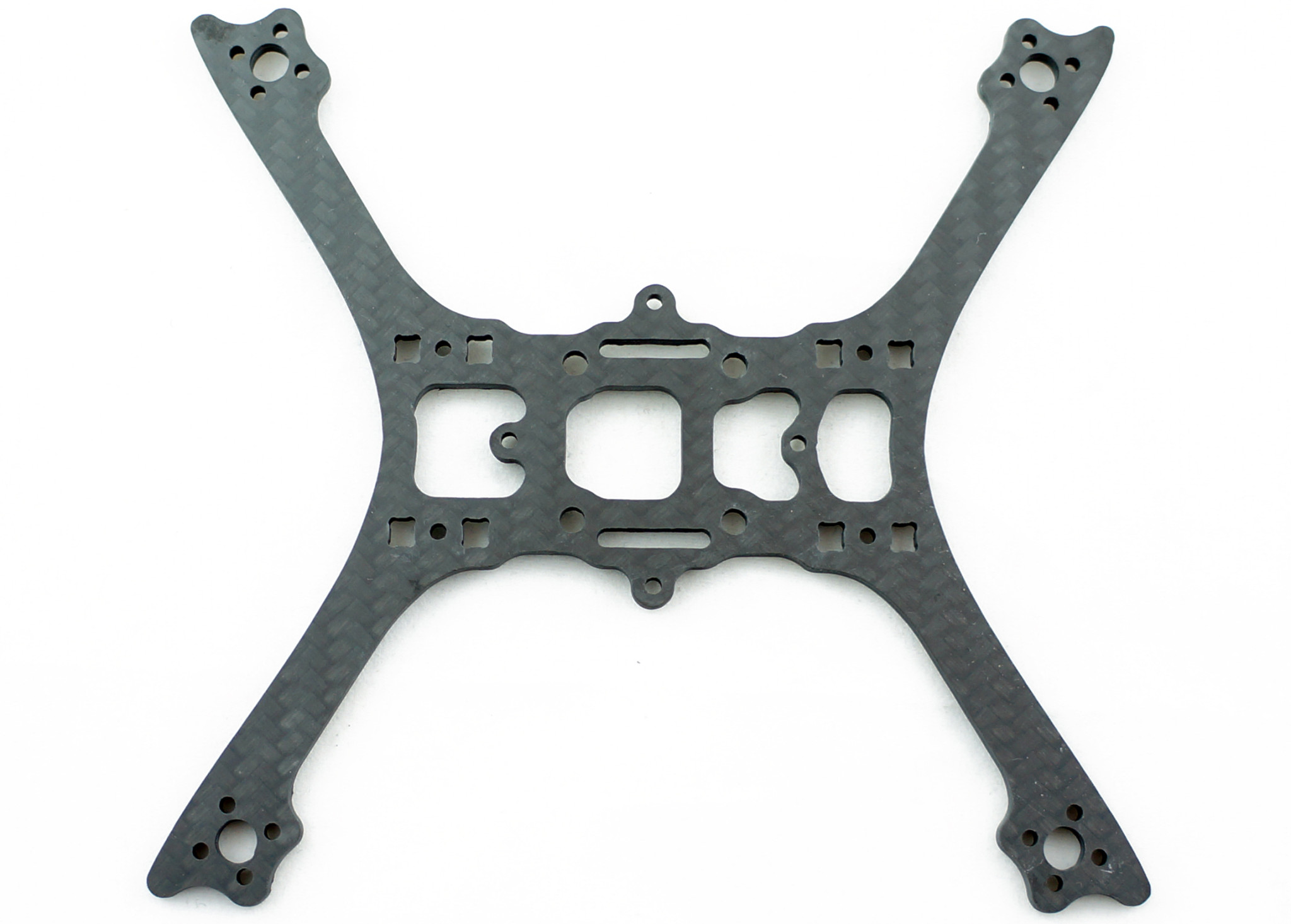

Rotorama Meffie 3" V2 is a continuation of the successful small frame. Meffie V2 combines the best of all Meffie variants and adapts to currently available parts. The frame weighs 25 grams, which makes it one of the lighter ones among classic 3-inch frames. It is designed for up to 3" propellers and motors with 9mm hole spacing (1204/1206/1404). Meffie is ideal for anyone who wants to fly in smaller spaces - in a gym, in the garden, or in a park.

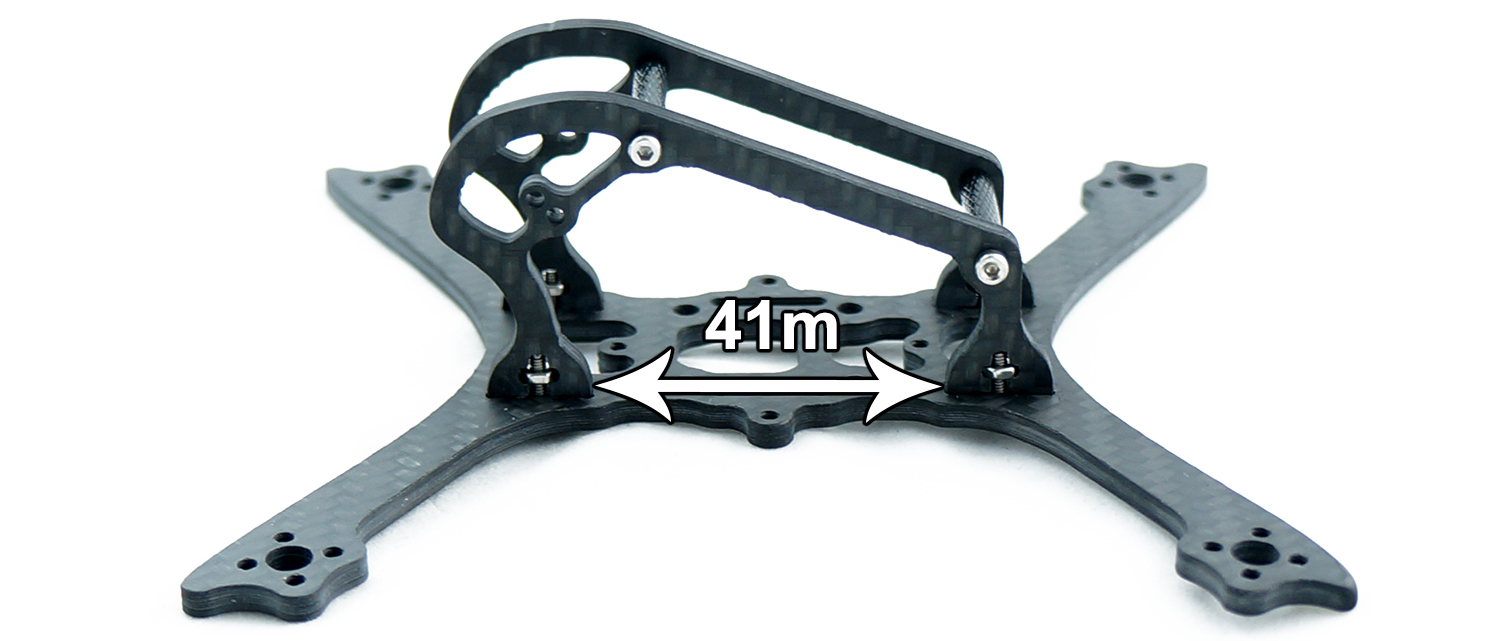

The frame fits stacks with 20x20mm M3 mounting holes. There is 41mm of space available for the stack, which is sufficient for most stacks.
It now also fits AIO boards with 25,5x25,5mm hole spacing (M2). A hole for the USB connector is cut into the bottom plate, which some AIO boards have facing downward. On the sides of the frame, there are two 14mm wide slots prepared for the lipo strap.
The canopy lock is taken from the Meffie 2.5". Compared to the previous version, lighter 20mm M2 standoffs are used. The frame is therefore intended for micro-sized cameras. The camera can be mounted in one of two positions in the side plates, allowing the use of cameras with both longer and shorter lenses.
Key Features
- Weight: 25g
- Maximum propeller size: 3"
- Camera size: Micro
- Motor mounting holes: 9mm M2
- Stack mounting holes: 20x20mm M3 / 25,5x25,5mm M2
- Bottom plate thickness: 3mm
- Side plate thickness: 3mm
Package Includes
- 1x Frame
