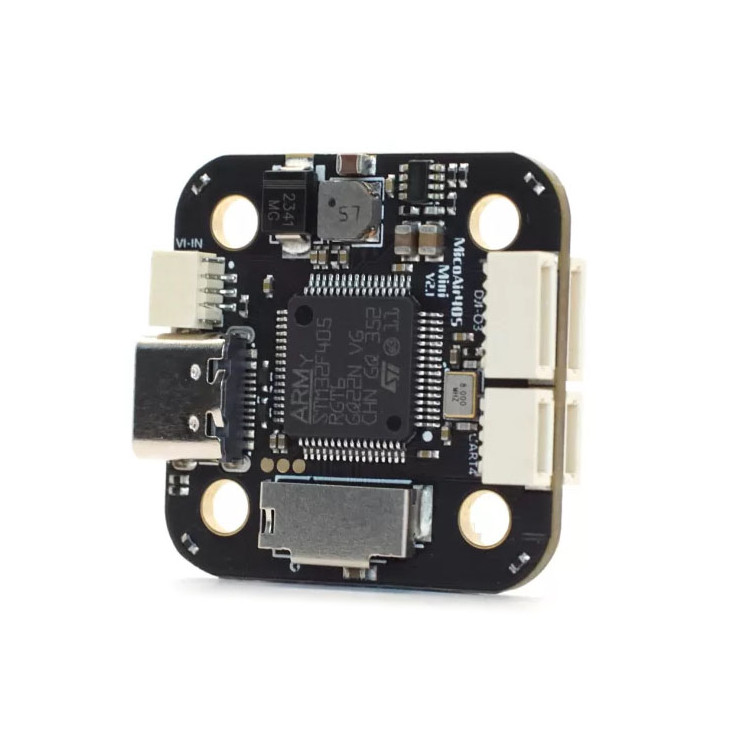

MicoAir F405 Mini is a compact flight controller suitable for building smaller drones with advanced stabilization or autonomous flight capabilities. MicoAir F405 Mini supports Ardupilot firmware as well as Betaflight and iNav. Thanks to its extensive features, the board allows connection of a wide range of sensors, servos, and other peripherals. It includes an SD card slot for storing logs, missions, or terrain elevation maps.
The flight controller is based on an STM32F405 processor, a BMI270 gyro, and a DPS310 barometer. The board offers 6 UARTs and an I2C bus for peripheral connectivity. There are 9 PWM outputs for motors, servos, switches, or other accessories. Additional features include a USB-C connector, OSD chip for analog video, and integrated 5V/2.5A and 9V/2.5A BECs.
Key Features
- Input Voltage: 3-6S
- BEC: 5V@2.5A, 9V@2.5A
- MCU: STM32F405RGT6, 168MHz, 1MB Flash
- Gyro: BMI270
- Barometer: DPS310
- OSD: AT7456E
- Blackbox: SD card
- Number of UARTs: 6
- Number of PWM outputs: 9
- I2C: Yes
- SWD: Yes
- Mounting holes: 20x20mm
- Size: 30x30x8mm
- Weight: 6g
Package Includes
- 1x Flight controller
- 1x Softmount Kit
- 1x Cable Kit
