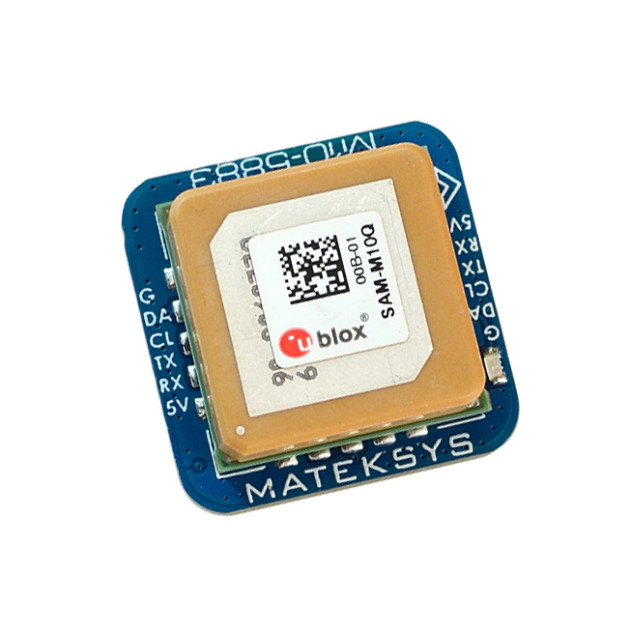

Matek M10Q-5883 GPS with compass

In Stock
€ 44,89

The Matek M10Q-5883 is a high-quality GPS module with an integrated QMC5883L compass suitable for drones and airplanes with Betaflight/iNav/Ardupilot firmware. The Matek M10Q-5883 uses the u-blox SAM-M10Q, which surpasses the M8 series chips in sensitivity and accuracy, used in common GPS modules. MAX-M10S supports GPS, GLONASS, Galileo and BeiDou systems. The GPS module is connected via UART (RX, TX pins). The compass is connected via the I2C bus (DA, CL pins).

Detailed informations

Key Features

  • Chip: u-blox SAM-M10Q-00B
  • Compass: QMC5883L
  • Antenna: 15x15x4mm
  • Input voltage: 5V
  • Current: 13mA
  • Size: 20 x 20 x 12.4mm
  • Weight: 8g
  • Protocol: u-blox

Package Includes

  • 1x  M10Q-5883
  • 1x Cable
