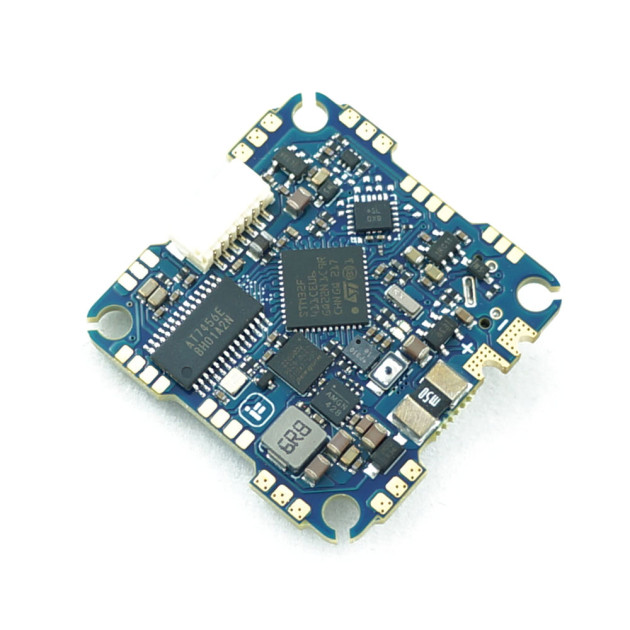

Blitz Whoop F411 AIO is a flight controller with ESCs in one. The board finds use primarily in small and lightweight toothpick drones. The Blitz Whoop 20A has a connector for connecting a DJI FPV transmission, making installation easier if using a digital system. However, thanks to the integrated OSD, it can also be fully used on analogue drones. The flight controller has 8MB memory for blackbox.
Wiring diagram here.
Key Features
- Input Voltage: 2-4S
- Current: 20A
- Size: 30.5x30.5mm
- Mounting Holes: 25.5x25.5mm M2
- Connector: Micro USB
- Processor: STM32F411
- Gyro: MPU6000
- Blackbox: 8MB
- Current sensor
- Firmware: BlHeli_S G-H-30 BLS
- BF Target: IFLIGHT_F411_PRO
Package Includes
- 1x AIO Board
- 1x capacitor
- 1x cable with XT30
- 1x cable for DJI FPV connection
- 1x set of screws
- 1x softmount
