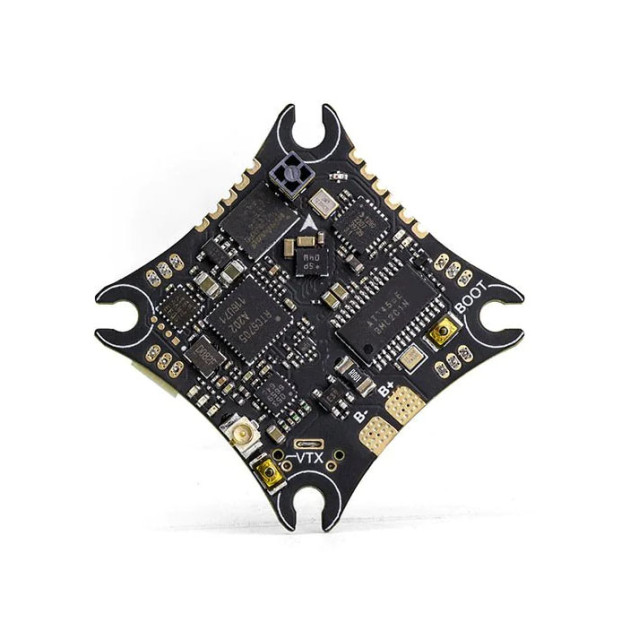

HGLRC Zeus5 ES24 is a small flight controller suitable for Tinywhoops and toothpicks powered by 1S battery. Single board contains everything needed for flight. So the board includes a controller with F411 processor, BMI270 gyro as well as 16MB memory for the blackbox. The ESCs use Bluejay firmware and can handle 5A current. We therefore recommend using them with motors up to size 1002. The board has an integrated ELRS 2.4GHz receiver with ceramic antenna connected via SPI. However, there is a UART to connect an external RC receiver. Video transmission is provided by an integrated video transmitter with a power of up to 200mW. The FPV antenna is connected via a u.FL connector and can thus be easily replaced with a better one. For easy connection of motors, the board is equipped with connectors.
Key Features
- Input voltage: 1S (2.9-4.35V)
- MCU: STM32F411
- Gyro: BMI270
- BEC: 5V 1.5A
- Blackbox: 16MB
- Receiver: ELRS 2.4GHz SPI
- VTX: 48CH 25/100/200mW
- ESC FW: Bluejay (O-H-5)
- ESC Current: HGLRCF411SX1280
- Mounting holes: 25.5x25.5mm M2
- Size: 32x32mm
- Weight: 6.2g
Package Includes
- 1x Control unit
- 1x XT30 connector
- 1x PH2.0 connector
- 1x Linear antenna
- 1x Softmount kit
- 1x Camera connector
