HGLRC Zeus VTX 25-800mW

€ 33,29

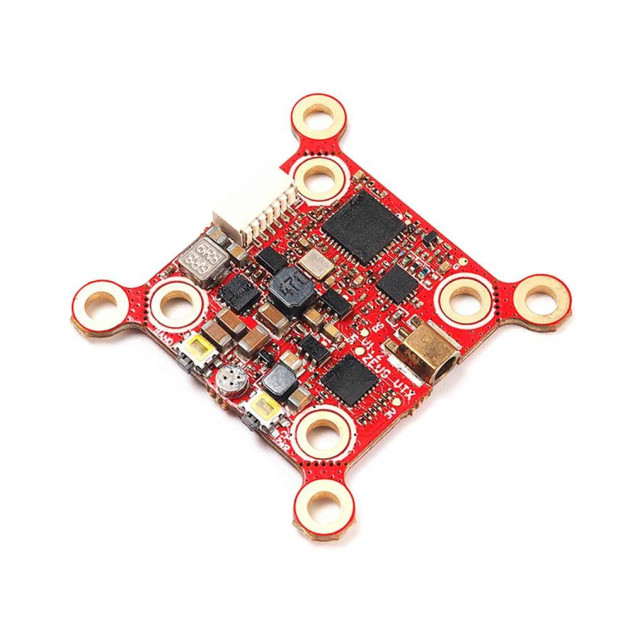

Zeus VTX is a video transmitter from the HGLC brand for racing and freestyle copters. The video transmitter has a microphone and an LC filter. It can be connected using both the connector and the cables soldered to the prepared pads. The current channel and band is clearly displayed using LEDs, switching is easy with two buttons. Support for settings through Betaflight using the IRC Tramp protocol is a matter of course. Power is adjustable from 25-800mW, which is suitable for freestyle and long-range. The video transmitter can be placed both from large 30x30mm stacks and into smaller stacks with a hole spacing of 20x20mm.

VTX Table

Key Features

  • Input voltage: 6-26V
  • Output voltage: 5V @ 2A
  • Power: PIT / 25/100/200/400 / 800mW
  • Antenna connector: MMCX
  • Mounting holes: 30.5x30.5mm / 20x20mm M3
  • Size: 37x37x5mm
  • Weight: 4.8g

Package Includes

  • 1x Video transmitter
  • 1x Linear antenna
  • 1x Cable
  • 1x SMA pigtail
