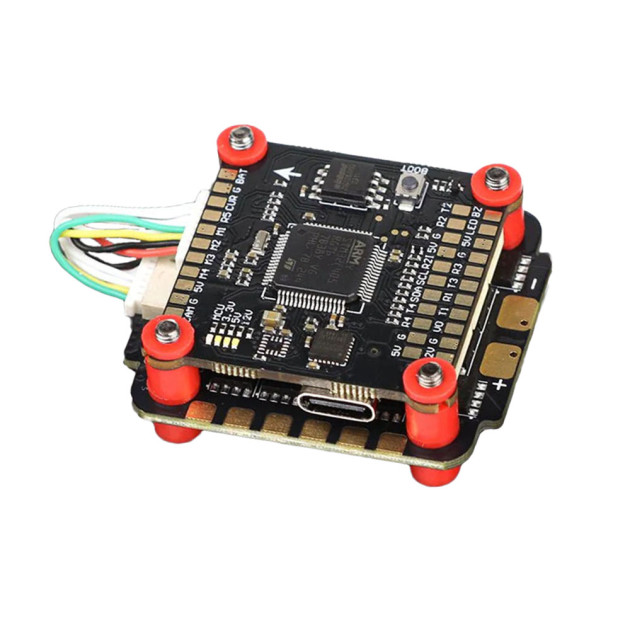

The HGLR Specter F450 is a flight controller and ESC combination suitable for 5" freestyle or racing drones.
The flight controller is based on the F405 processor and the reliable MPU6000 gyro. The board has 16MB memory for blackbox, 10V and 5V BEC and OSD for analogue drones. On the underside, the board has connectors for digital video transmission, RC receiver, LEDs, ESCs and camera. This keeps the need for soldering to a minimum.
The ESC can be powered by 3-6S Lipo batteries, can handle current up to 50A and uses BlHeli_S firmware. The ESC connects to the flight controller via a connector, but solder pads are also available. The ESCs also includes a current sensor.
Key Features
- Processor: STM32F405
- IMU: MPU6000
- OSD: AT7456E
- Blackbox: 16MB
- Input voltage: 2-6S Lipo
- BEC: 10V@2A, 5V@2.5A
- BF Target: SPEDIXF405
- Current: 50A
- ESC Firmware: BlHeli_S
- Mounting holes: 30.5x30.5mm
- Input voltage: 3-6S Lipo
Package Includes
- 1x Flight controller
- 1x ESCs
- 1x Softmounts
- 1x XT60 with cable
- 1x Capacitor
- 1x Set of cables
