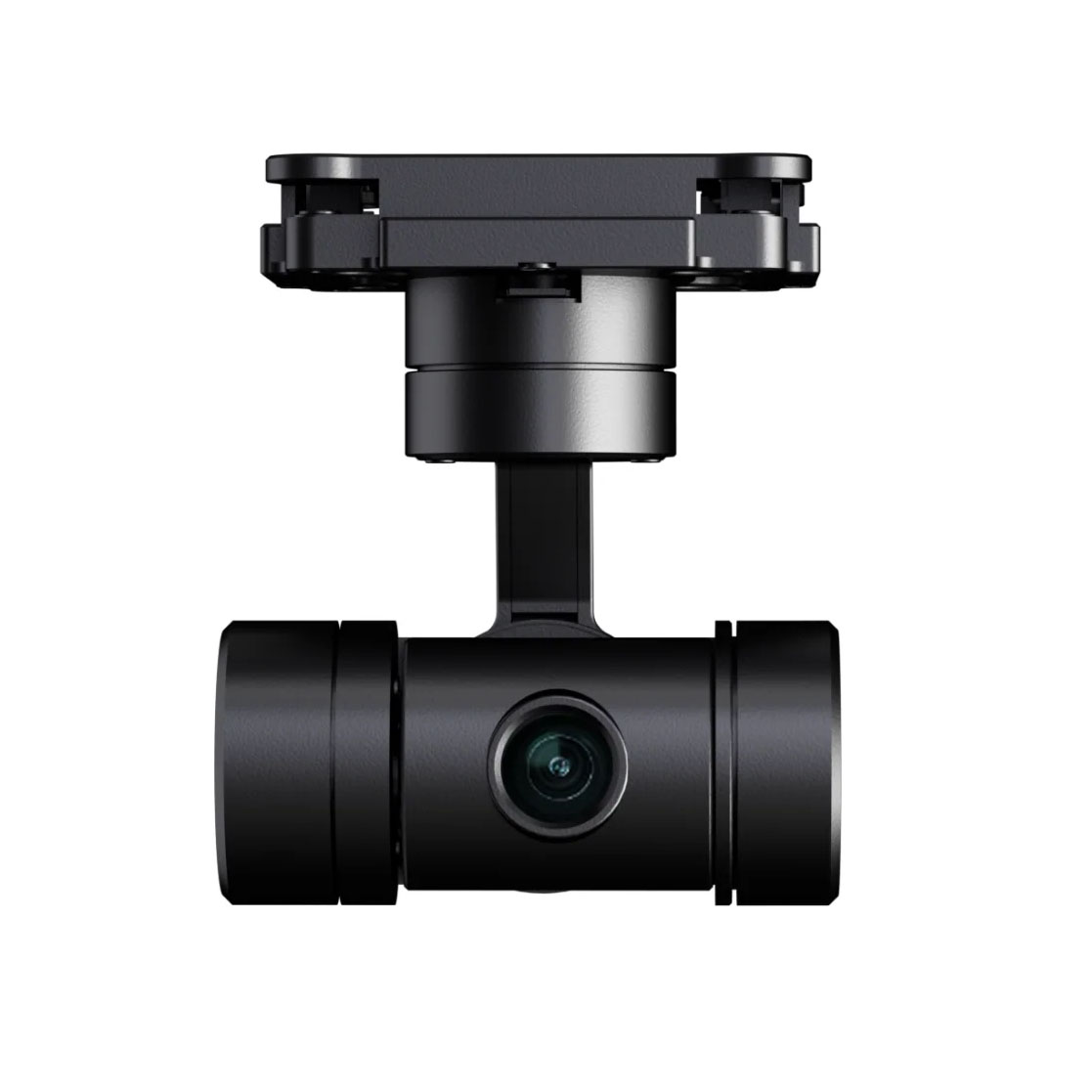

HEQUAV G-port 3 is a 3-axis gimbal designed for FPV drones, RC airplanes, cars, and other models. The gimbal can be installed with the camera facing up or down, depending on your needs. It can be controlled via a flight controller or RC transmitter using SBUS, PWM, or Mavlink protocols. It supports both a stabilized mode, where it compensates for drone movement, and an FPV mode, where it smoothly follows the drone's motion. It also supports headtracking mode.
A Windows configuration app is available for setup. You can adjust orientation, rotation speed, operation mode, input channels, and more. The gimbal supports a power supply range of 12–18 V. It is mounted on a carbon plate using rubber soft mounts that help reduce vibration.
The G-Port is designed for use with the DJI O4 system.
Key Features
- Input voltage: 12-18V
- Pitch range: -135° to 45°
- Roll range: -45° to 45°
- Yaw range: -135° to 135°
- Supported protocols: SBUS, PWM, Mavlink
- Supported camera: DJI O4
- Modes: Stabilized, FPV
- Weight: 75g
Package Includes
- 1x Gimbal
- 1x DJI O4 Camera Mount
- 1x Carbon Plate
- 1x Cable Kit
- 1x Softmount Kit
